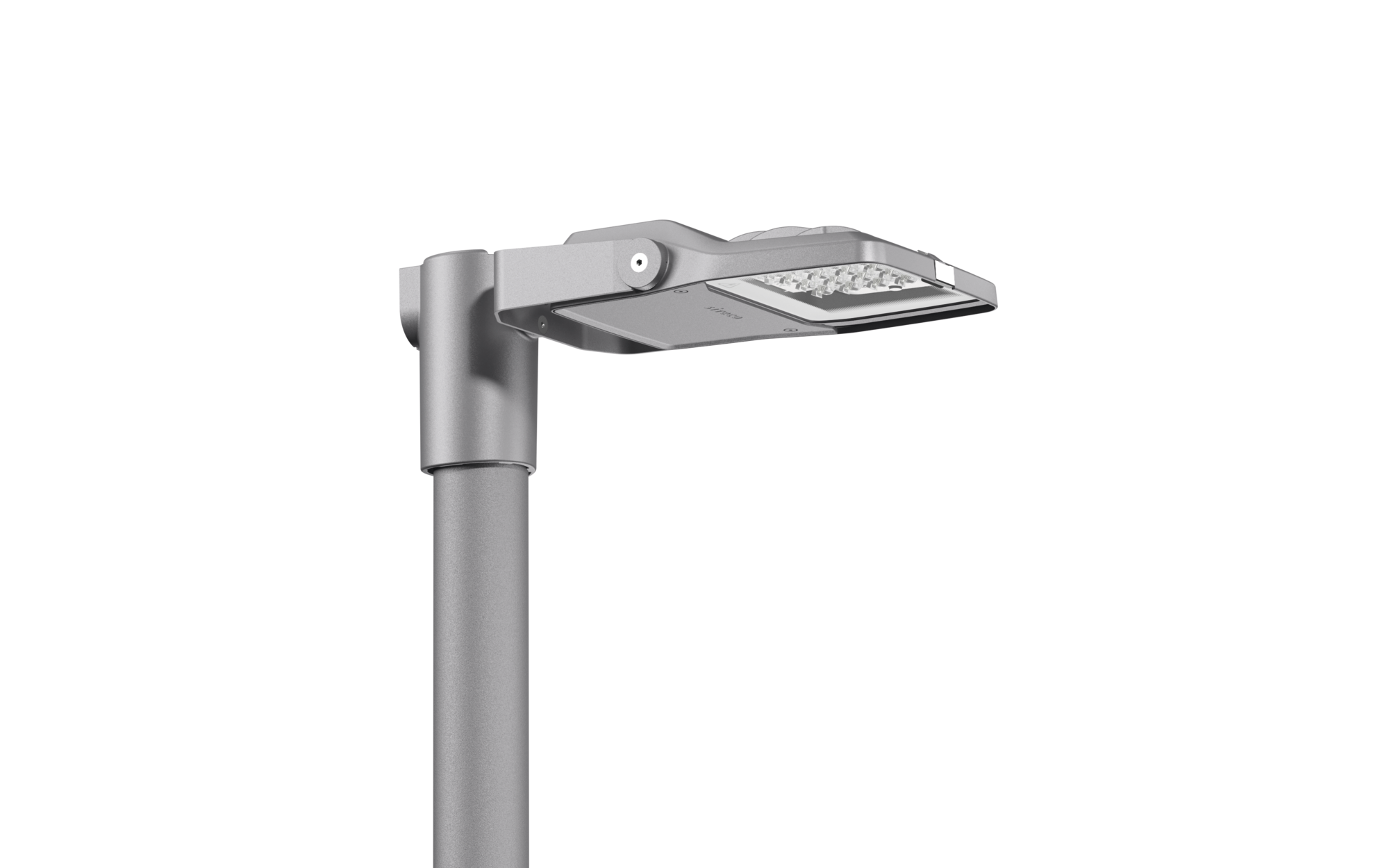

Floodlight FL 21 iQ micro, PL64, direct distribution
SchließenArticle floodlight
Product name Floodlight FL 21 iQ micro
Lamp LED
Rated luminous flux 2980lm
Luminous efficacy 129lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 23
Pnom end service life 24
Pred at 50% lumin. flux 11
Service life 100000h (L97/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK07
Weight 3.3kg
Floodlight FL 21 iQ micro, floodlight, primary light control with lens, of PMMA, primary optical cover: protective disc, of toughened safety glass, transparent, light distribution: PL64, light emission: direct distribution, installation type: surface-mounted, LED, High Power LED, rated luminous flux: 2.980lm, luminous efficacy: 129lm/W, light colour: 740, colour temperature: 4000K, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, with terminal, 6-pole, mains connection: 220..240V, AC, 50/60Hz, start of lifetime: 23W, end of service life: 24W, reduction: 11W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), corrosivity category C5 mid according to DIN EN ISO 12944, sealing non-destructively replaceable, please order mast flange separately, mast bracket, of steel, galvanised, powder-coated, Siteco® metallic grey (DB 702S), protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, protection symbol: D, impact resistance: IK07, permissible operating ambient temperature: -40..+40°C, permissible operating ambient temperature for outdoor applications: -40..+50°C, standard: DIN EN 12944, LABS conformity tested according to VDMA 24364:2018-05, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
![](/asset/de_en/%2A/PNG500A/1000244/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000145/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000175/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000176/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000173/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000148/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000165/5XA7761A4E3A.png)
![](/asset/de_en/%2A/PNG500A/1000177/5XA7761A4E3A.png)

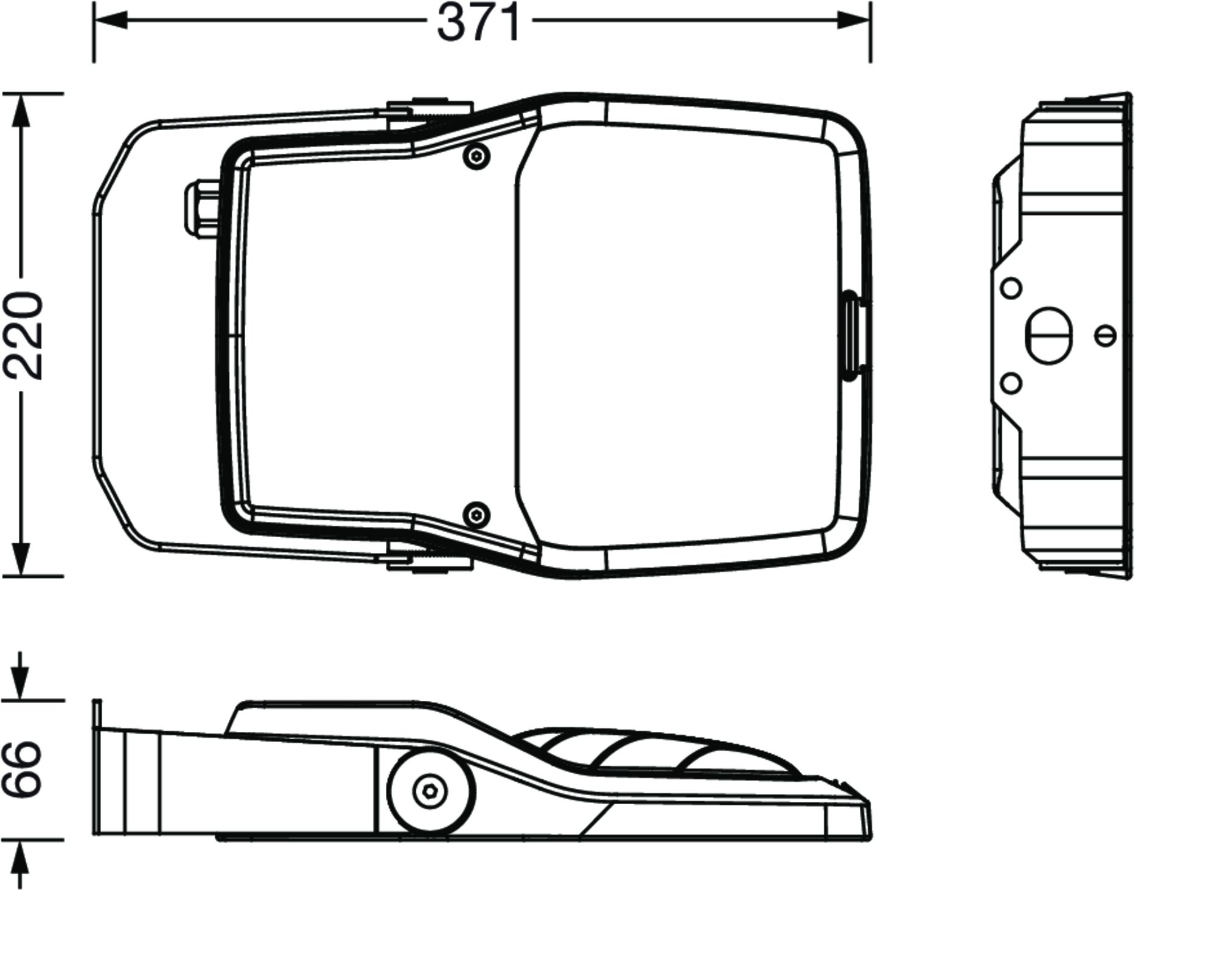

Produktdetails
![](/asset/de_en/%2A/LIDPIC/1155135/5XA7761A4E3A_1xLED_59252_82.jpg)

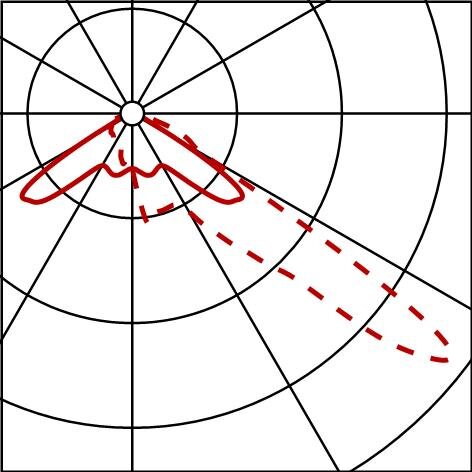

Lichttechnischer Prüfbefund / Planungsdaten
Floodlight FL 21 iQ micro
LED, direct distribution, surface-mounted, to mast
Bestellnr.: 5XA7761A4E3A
