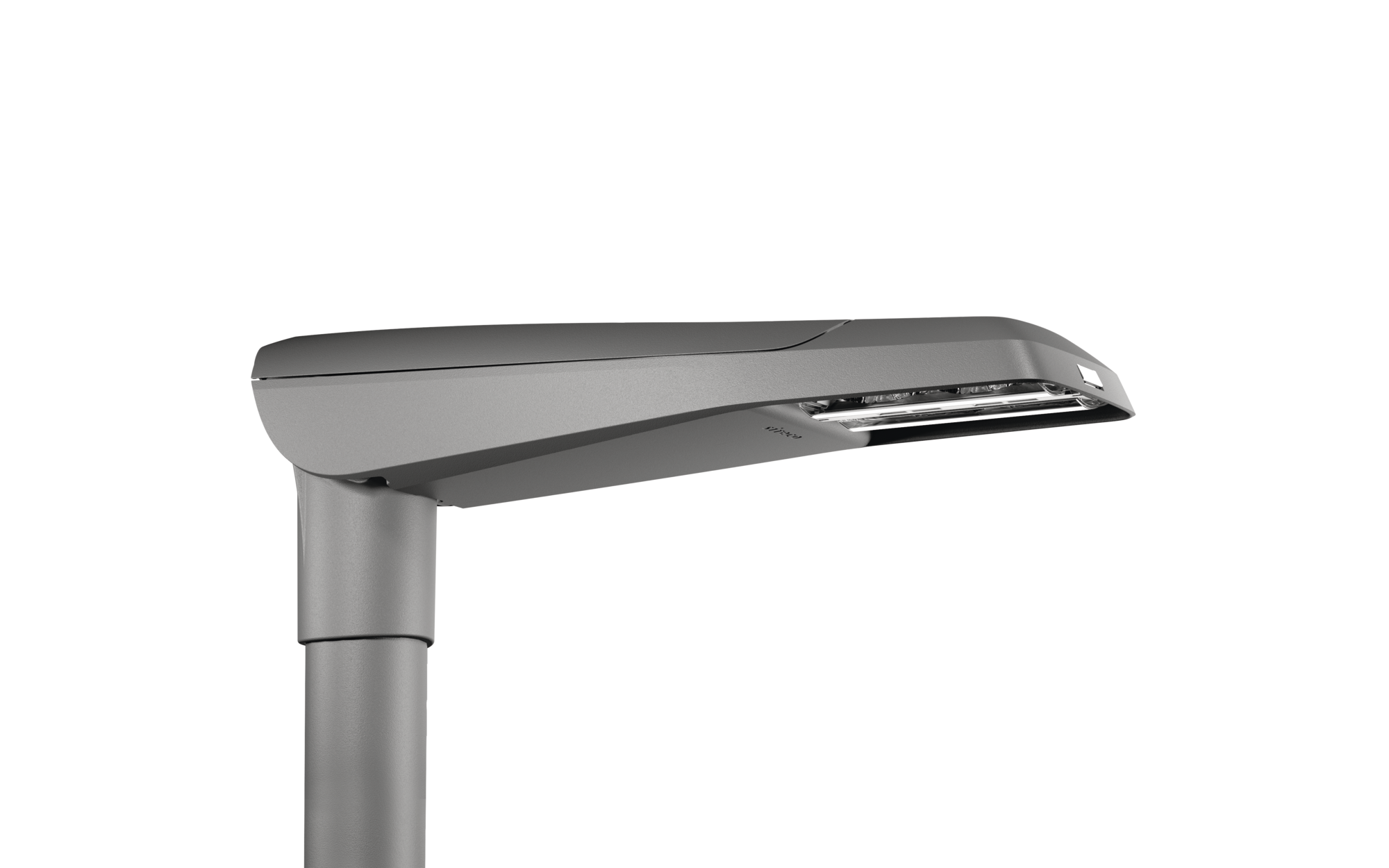

Streetlight SL 11 iQ micro, direct asymmetric wide distribution, P1.0a
SchließenArticle mast luminaire
Product name Streetlight SL 11 iQ micro
Lamp LED
Rated luminous flux 1660lm
Luminous efficacy 154lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Pnom begin service life 11
Pnom end service life 11
Pred at 50% lumin. flux 6
Service life 100000h (L98/B10) at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 5.2kg
Streetlight SL 11 iQ micro, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: P1.0a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 1.660lm, luminous efficacy: 154lm/W, light colour: 740, colour temperature: 4000K, control: optimised constant luminous flux control (CLO 2.0), Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), Light-Fading, Smart-Wire, Night-Set, Lumen-Switch, Temp-Guard, Auto-Match, with cable H07RN-F 5x 1.5mm², mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 5,5m, start of lifetime: 11W, end of service life: 11W, reduction: 6W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 600mm, width: 174mm, height: 116mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: standard, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece
Downloads
Technische Produktinformationen
- Montageanleitung (PDF)
- Datenblatt ausführlich (PDF)
- Environmental Product Declaration EPD (PDF)
- Lichttechnischer Prüfbefund / Planungsdaten
Daten für Anwendungsprogramme
![](/asset/de_en/%2A/PNG500A/1000259/5XC1C41E08CE.png)
![](/asset/de_en/%2A/PNG500A/1000145/5XC1C41E08CE.png)
![](/asset/de_en/%2A/PNG500A/1000175/5XC1C41E08CE.png)
![](/asset/de_en/%2A/PNG500A/1000173/5XC1C41E08CE.png)
![](/asset/de_en/%2A/PNG500A/1000150/5XC1C41E08CE.png)
![](/asset/de_en/%2A/PNG500A/1000165/5XC1C41E08CE.png)
![](/asset/de_en/%2A/PNG500A/1000177/5XC1C41E08CE.png)
Produktdetails
![](/asset/de_en/%2A/LIDPIC/1325313/5XC1C41E08CE_1xLED_58063_315.jpg)

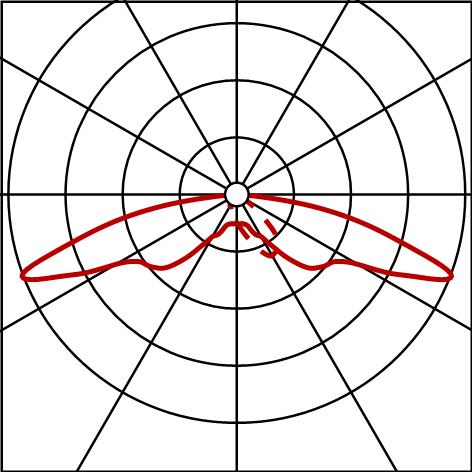

Lichttechnischer Prüfbefund / Planungsdaten
SL11iQmc
P1.0a,1660lm740,Comf
Bestellnr.: 5XC1C41E08CE
