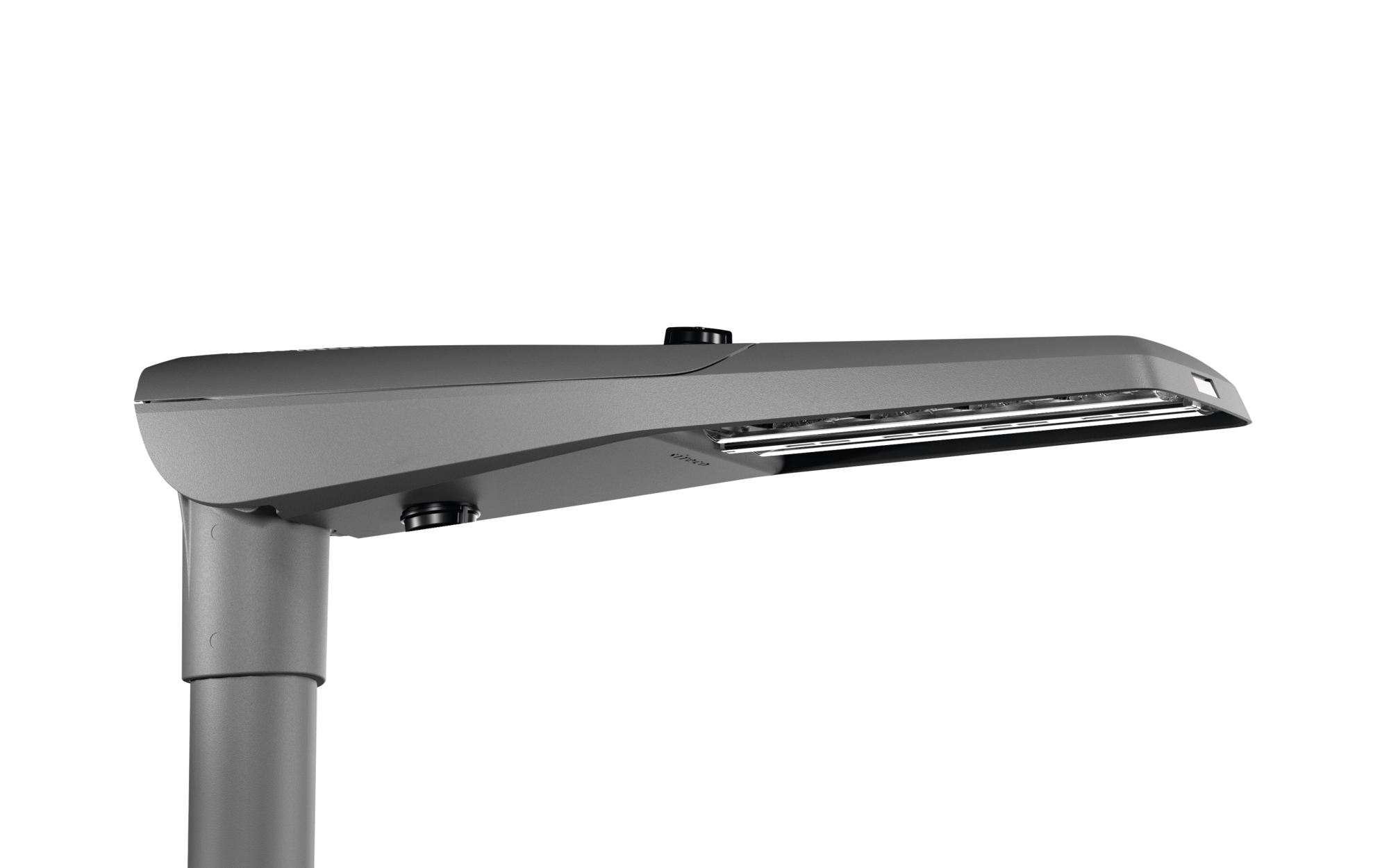

Streetlight SL 11 iQ mini, direct asymmetric wide distribution, ST1.2a, with Smart Interface below and above
SchließenArticle mast luminaire
Product name Streetlight SL 11 iQ mini
Lamp LED
Rated luminous flux 6920lm
Luminous efficacy 119lm/W
Colour temperature 2200K
Colour rendering CRI > 70
Pnom begin service life 58
Pnom end service life 61
Pred at 50% lumin. flux 27
Service life 100000h at AT = 25°C
Protection rating IP66
Impact resistance IK09
Weight 6.8kg

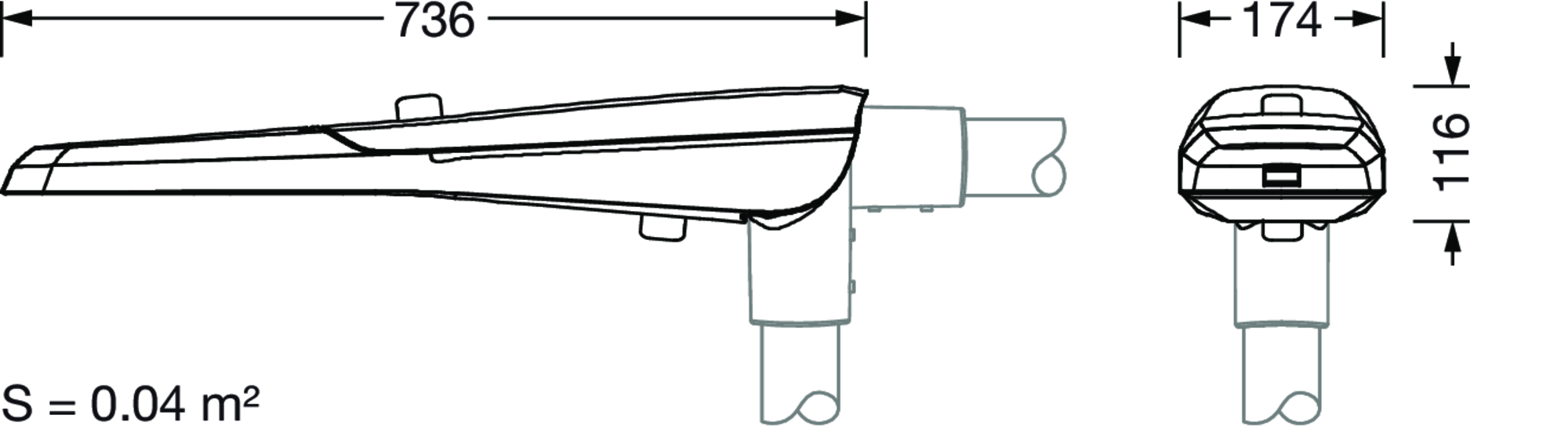

Streetlight SL 11 iQ mini, mast luminaire, primary light control with 3 zone facetted reflector, of plastic, silver coated, highly specular, primary optical cover: cover, of PMMA, transparent, light distribution: ST1.2a, light emission: direct distribution, primary light characteristic: asymmetric, installation type: post-top, side-entry, LED, High Power LED, rated luminous flux: 6.920lm, luminous efficacy: 119lm/W, light colour: 722, colour temperature: 2200K, control: pre-setting: logarithmic dimming characteristic, Street-Remote, Auto-Match, Temp-Guard, Lumen-Switch, Night-Set, Smart-Wire, Light-Fading, Desk-Remote (wireless, voltage-free reading and setting of iQ features in the workshop via application-optimized NFC function/RFID function), optimised constant luminous flux control (CLO 2.0), with cable H07RN-F 5x 1.5mm², mains connection: 230..240V, AC, 50/60Hz, connection cable pre-assembled, cable length: 8,5m, start of lifetime: 58W, end of service life: 61W, reduction: 27W, luminaire housing, of diecast aluminium, powder-coated, Siteco® metallic grey (DB 702S), please order mast flange separately, inclination adjustable without tools: 0°, 5°, 10°, 15° (post-top) | 0°, -5°, -10°, -15° (side-entry), sealing non-destructively replaceable, multi-level sealing system, length: 736mm, width: 174mm, height: 116mm, mast flange for spigot size: 42mm (side-entry): 5XC10008XM4, 60/48mm (side-entry/post-top): 5XC10108XM2, 76/60mm (side-entry/post-top): 5XC10108XM1, equipment: Power, Smart Interface below and above, protection rating (complete): IP66, insulation class (complete): insulation class II (safety insulation), certification: CE, ENEC, VDE, UKCA, impact resistance: IK09, permissible operating ambient temperature for outdoor applications: -25..+50°C, standard-compliant lighting for roads and squares, Environmental Product Declaration (EPD) tested and certified by an independent institute, packaging unit: 1 piece
Downloads
Technische Produktinformationen
- Montageanleitung (PDF)
- Datenblatt ausführlich (PDF)
- Environmental Product Declaration EPD (PDF)
- Lichttechnischer Prüfbefund / Planungsdaten
Daten für Anwendungsprogramme
Produktdetails

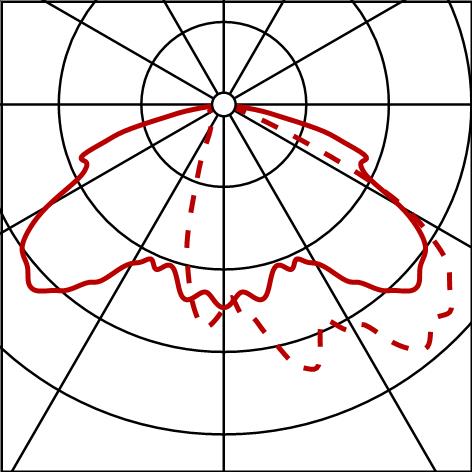

Lichttechnischer Prüfbefund / Planungsdaten
SL11iQmn
ST1.2a,6920lm722,SR,D4i,LST
Bestellnr.: 5XC2A21Y08HE
