Licross®, asymmetric extremely wide distribution, Application area escape and rescue routes
SchließenArticle luminaire insert
Product name Licross®
Lamp LED
Rated luminous flux 300lm
Luminous efficacy 77lm/W
Colour temperature 4000K
Colour rendering CRI > 70
Rated input power 3.9W
Service life 50000h (L80/B50) at AT = 25°C
Protection rating IP40
Impact resistance IK06
Weight 0.5kg

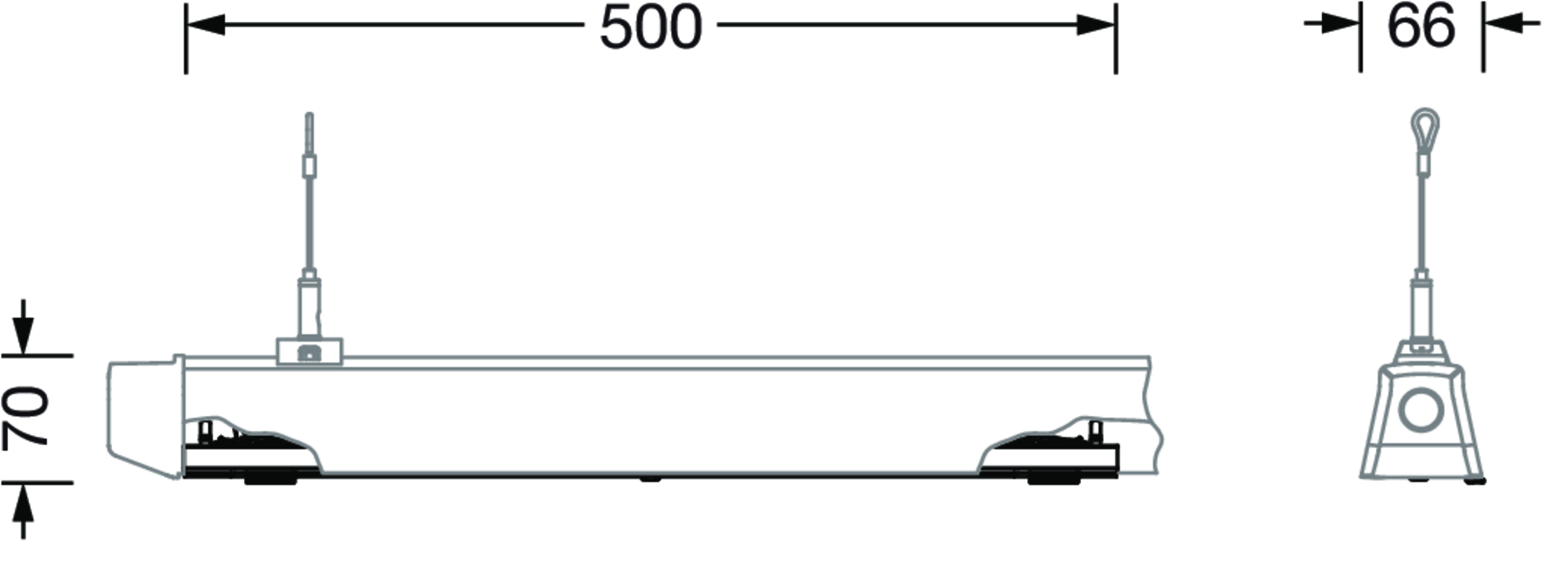

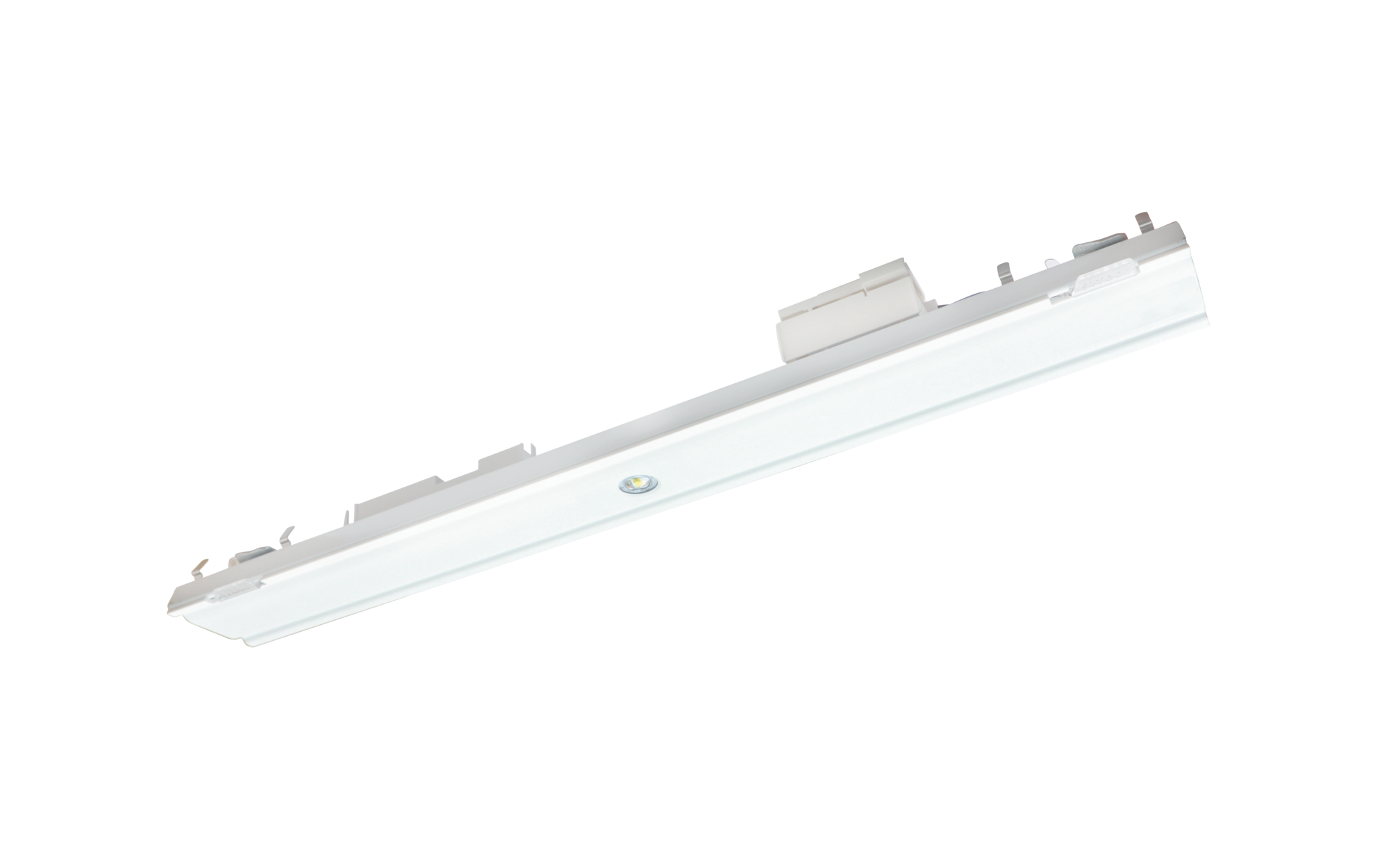

Licross®, luminaire insert, of sheet steel, coil coated, white, length: 500mm, width: 59mm, height: 60mm, mounting height: 2.5..7m, emergency light element,LED rated luminous flux: 300lm, light colour: 740, control gear: CEAG, with plug, 6-pole, with phase selection, mains connection: 220..240V, AC/DC, 0/50..60Hz, rated input power: 3.9W, halogen-free wiring, for trunking rail, 9..14-pole, for emergency light function, supply monitoring module CEAG, with address switch, choice between two emergency light lines via tool-free moving of contact pin prior to installation in trunking rail, primary light control with lens, of PMMA, primary optical cover: cover, of PMMA, light emission: direct distribution, primary light characteristic: asymmetric, for escape and rescue routes, compatible with all CEAG STAR technology systems (ZB-S, DG-S (DualGuard-S), LP-STAR, AT-S+), protection rating (complete): IP40, insulation class (complete): insulation class I (protective earthing), certification: CE, UKCA, protection symbol: D if used in an environment without relevant dust loads, impact resistance: IK06, permissible ambient temperature for indoor applications: -20..+40°C, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
![](/asset/de_en/%2A/PNG500A/1000155/56TL197C4X31.png)
![](/asset/de_en/%2A/PNG500A/1000147/56TL197C4X31.png)
![](/asset/de_en/%2A/PNG500A/1000166/56TL197C4X31.png)
![](/asset/de_en/%2A/PNG500A/1000177/56TL197C4X31.png)
Produktdetails
![](/asset/de_en/%2A/LIDPIC/1245742/56TL197C4X31_1xLED_59463_1.jpg)

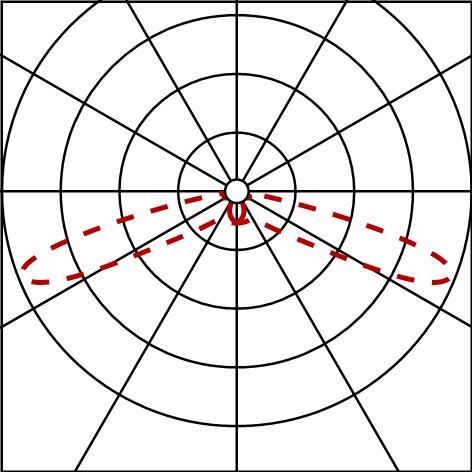

Lichttechnischer Prüfbefund / Planungsdaten
Lic
LI,asy,e.wd,300lm740,CEAG,wh
Bestellnr.: 56TL197C4X31
