Highbay 31-S, 90°

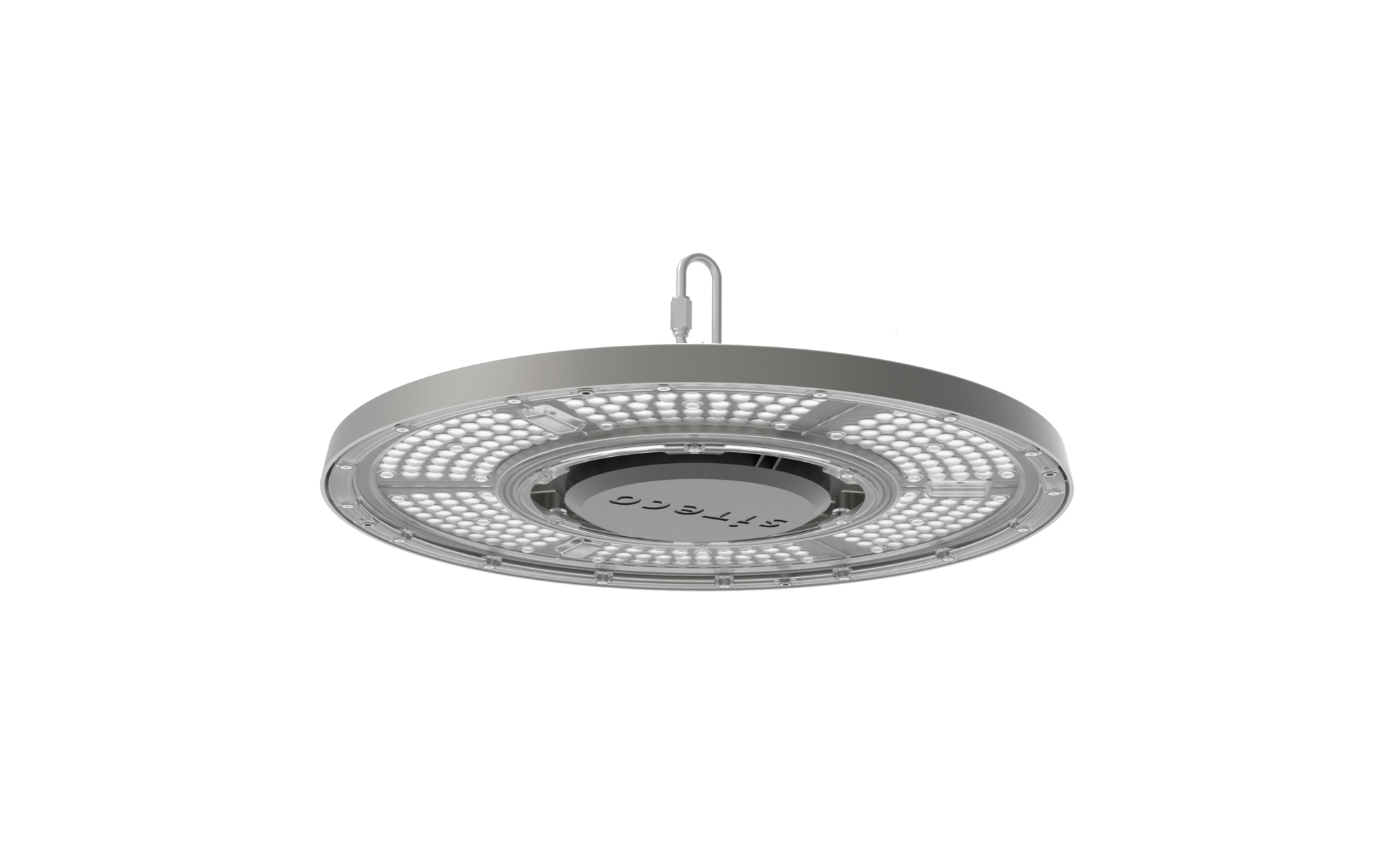

SchließenArticle LED high bay luminaire
Product name Highbay 31-S
Lamp LED
Rated luminous flux 20000lm
Luminous efficacy 150lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 134W
Service life 100000h (L70/B50) at AT = 35°C, 50000h (L85/B50) at AT = 45°C, 70000h (L80/B50) at AT = 45°C
Protection rating IP65
Impact resistance IK08
Weight 2.4kg

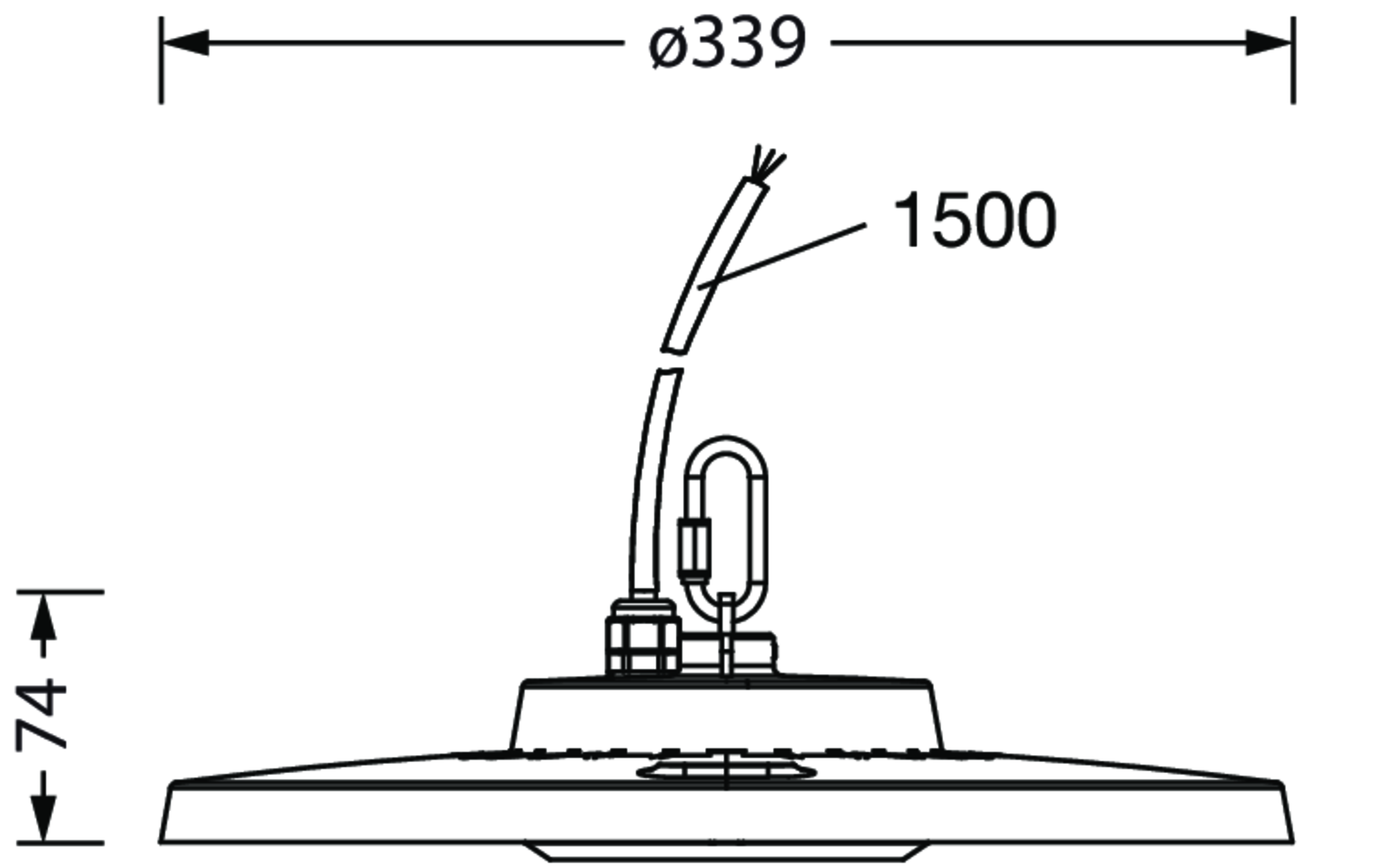

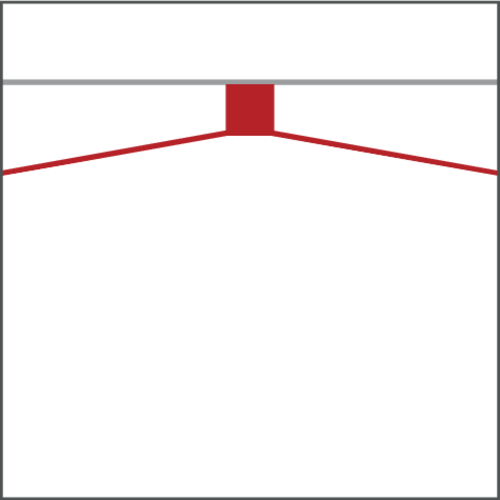

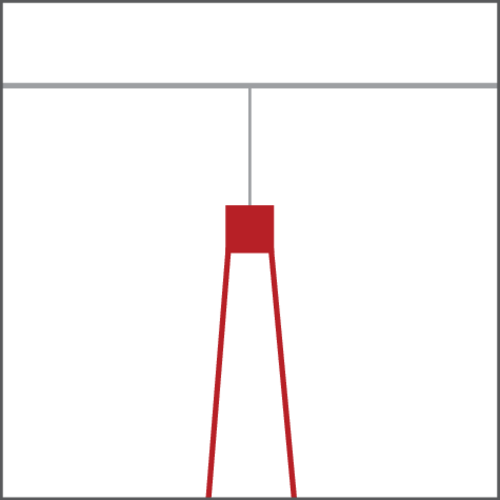

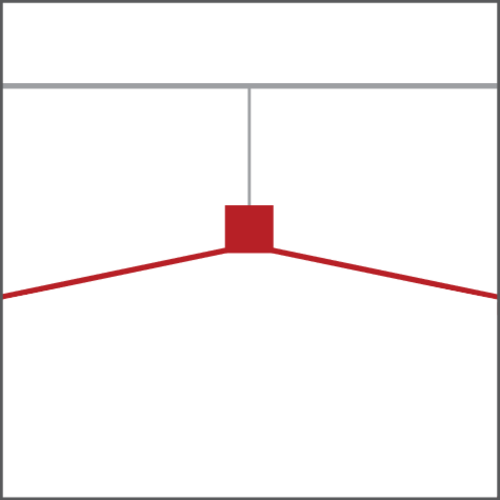

Highbay 31-S, LED high bay luminaire, primary light control with lens, of PC, primary optical cover: cover panel, of PC, transparent, light emission: direct distribution, primary light characteristic: rotationally symmetric, installation type: suspended mounting, surface-mounted, LED, rated luminous flux: 20.000lm, luminous efficacy: 150lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG, with cable, 3x 1.0mm², free wire ends, mains connection: 220..240V, AC/DC, 0/50..60Hz, cable length: 1,5m, rated input power: 134W, housing, rotationally symmetric, of diecast aluminium, powder-coated, grey aluminium (RAL 9007), with hook on luminaire side, incl. screw, diameter: 339mm, protection rating (complete): IP65, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -30..+45°C, standard: EN 60598-2-22, EN 60598, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
- Ausschreibungstext (TXT)
- Revit (RFA)
- 3D-Modell (3DS)
- 3D-Modell (3DS)
- 3D-Modell (3DS)
- 3D-Modell (DXF)
- 3D-Modell (DXF)
- 3D-Modell (DXF)
![](/asset/de_en/%2A/PNG500A/1000282/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000284/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000267/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000270/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000145/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000176/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000164/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000149/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000166/51HC427A4JMB.png)
![](/asset/de_en/%2A/PNG500A/1000177/51HC427A4JMB.png)
Produktdetails
![](/asset/de_en/%2A/LIDPIC/1112368/51HC427A4JMB_1xLED_59124_4.jpg)

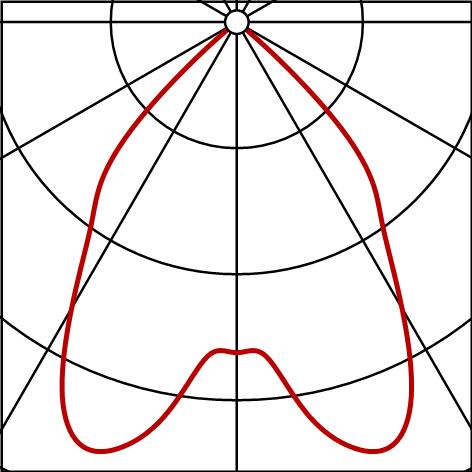

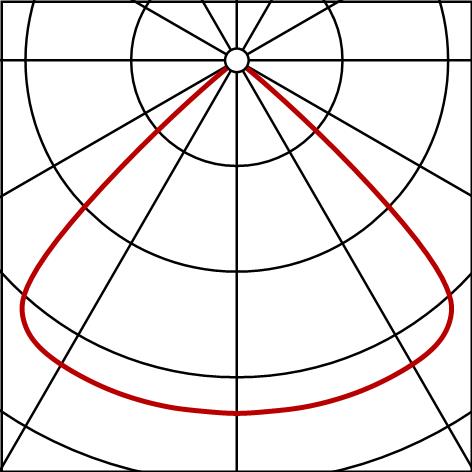

Lichttechnischer Prüfbefund / Planungsdaten
HB31S
rot.sym,90°,20000lm840,0/1
Bestellnr.: 51HC427A4JMB
