59HC91001
SchließenArticle reflector

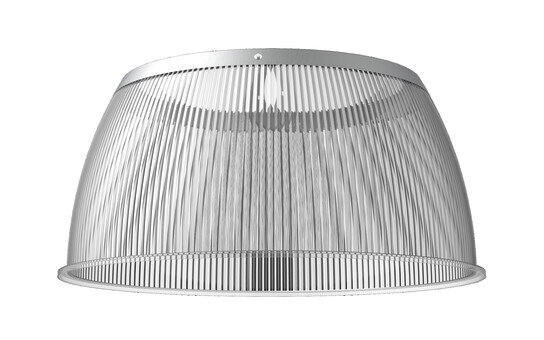

Product name Highbay 31 S
Weight 1.4kg
Highbay 31 S, reflector, primary light control with reflector, of PC, transparent prismatic structure, light emission: direct with ceiling illumination distribution, primary light characteristic: rotationally symmetric, installation type: surface-mounted, diameter: 480mm, height: 227mm, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
Produktdetails
![](/asset/de_en/%2A/LIDPIC/1112361/51HC427A4FMB-59HC91001_1xLED_59129_3.jpg)
Lichttechnischer Prüfbefund / Planungsdaten
HB31S
rot.sym,90°,14000lm840,0/1
Bestellnr.: 51HC427A4FMB
reflector
ø= 480mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distribution
Bestellnr.: 59HC91001

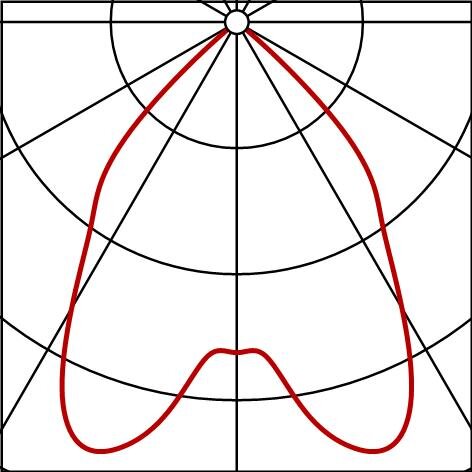

![](/asset/de_en/%2A/LIDPIC/1112369/51HC427A4JMB-59HC91001_1xLED_59130_3.jpg)
Lichttechnischer Prüfbefund / Planungsdaten
HB31S
rot.sym,90°,20000lm840,0/1
Bestellnr.: 51HC427A4JMB
reflector
ø= 480mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distribution
Bestellnr.: 59HC91001

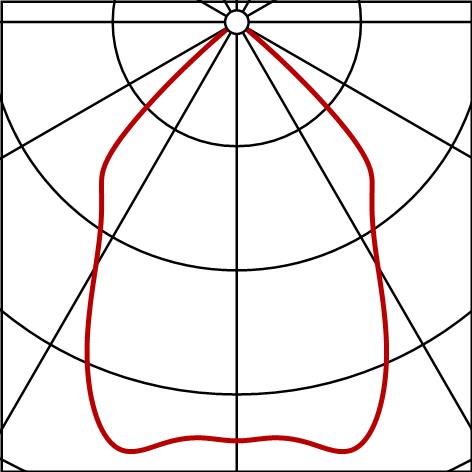

![](/asset/de_en/%2A/LIDPIC/1112384/51HC42DA4FMB-59HC91001_1xLED_59129_4.jpg)
Lichttechnischer Prüfbefund / Planungsdaten
HB31S
rot.sym,90°,14000lm840,DA2
Bestellnr.: 51HC42DA4FMB
reflector
ø= 480mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distribution
Bestellnr.: 59HC91001

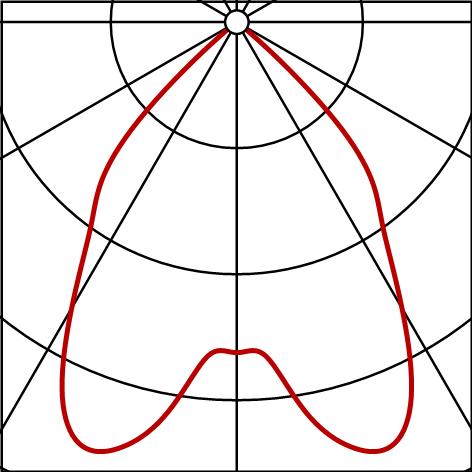

![](/asset/de_en/%2A/LIDPIC/1112390/51HC42DA4JMB-59HC91001_1xLED_59130_4.jpg)
Lichttechnischer Prüfbefund / Planungsdaten
HB31L
rot.sym,90°,20000lm840,DA2
Bestellnr.: 51HC42DA4JMB
reflector
ø= 480mm, PC, transparent prismatic structure, rotationally symmetric narrow to wide distribution
Bestellnr.: 59HC91001
