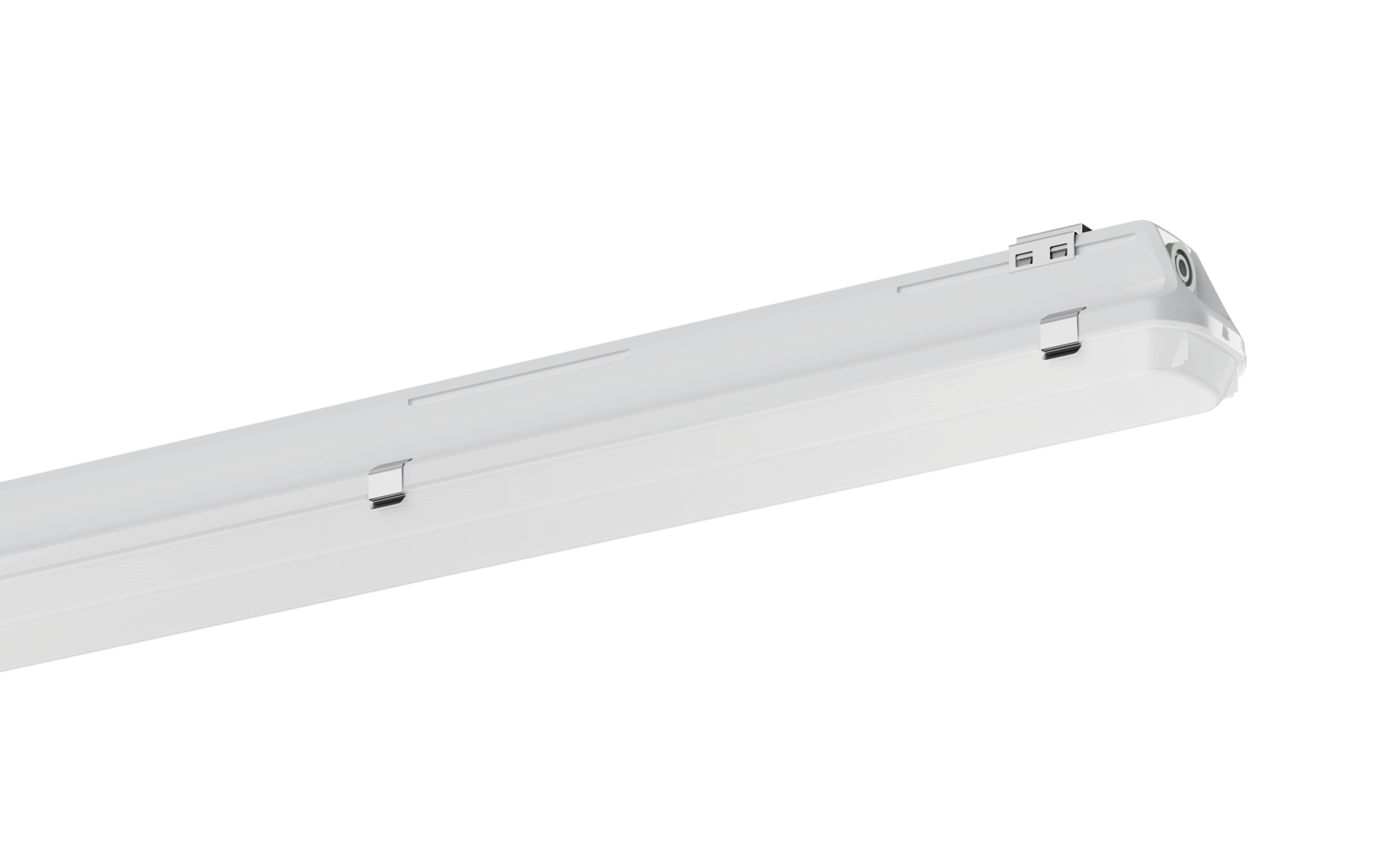

Monsun® 21 parking, diffuse distribution, ON/OFF, PC
SchließenArticle damp-proof luminaire
Product name Monsun® 21 parking
Lamp LED
Rated luminous flux 3930lm
Luminous efficacy 159lm/W
Colour temperature 4000K
Colour rendering CRI > 80
Rated input power 25W
Service life 50000h (L90/B50) at AT = 25°C
Protection rating IP66
Impact resistance IK08
Weight 2.1kg

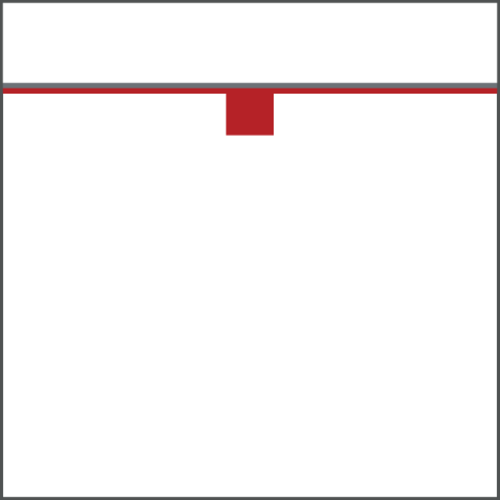

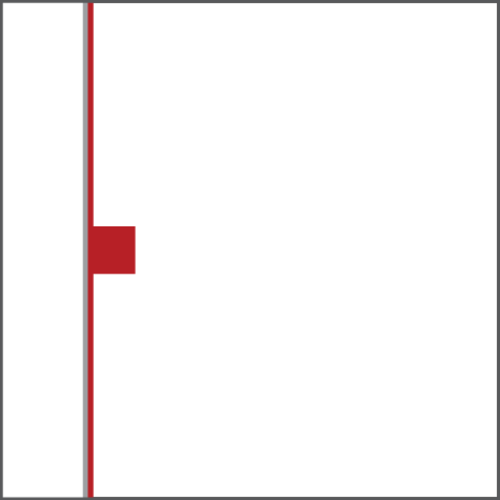

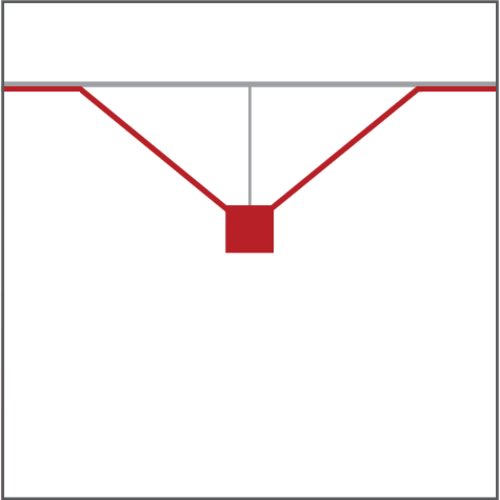

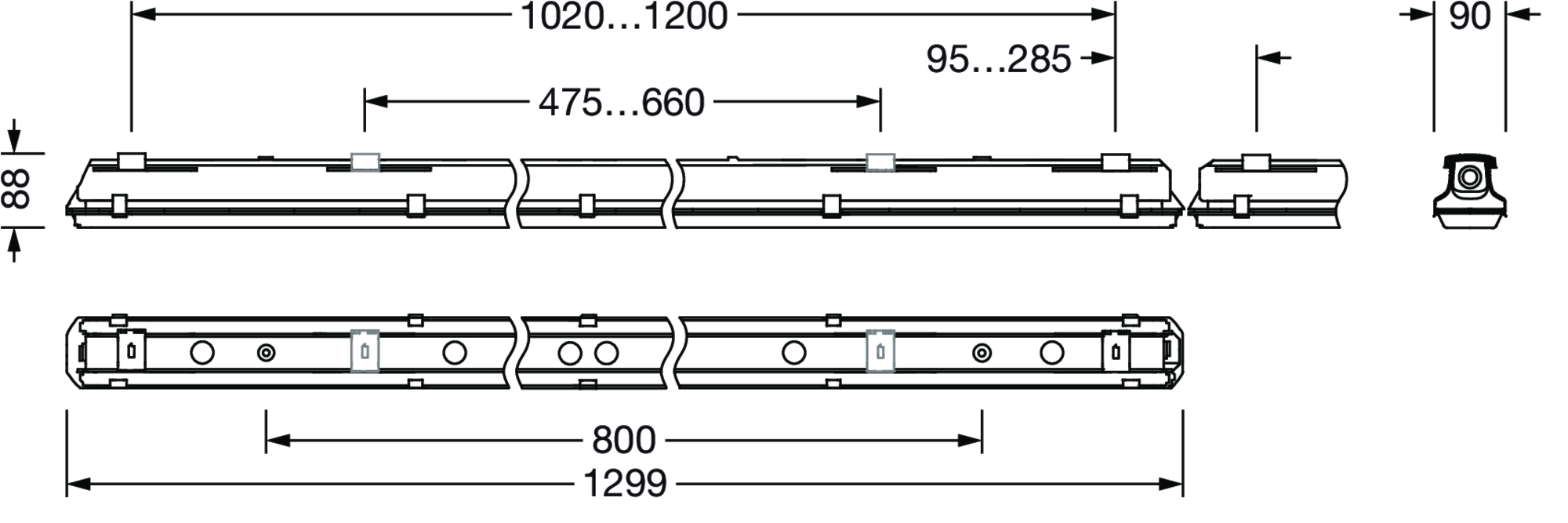

Monsun® 21 parking, damp-proof luminaire, chain hanger, primary optical cover: enclosure, of PC, light emission: direct distribution, primary light characteristic: symmetric, installation type: suspended mounting, surface-mounted, horizontal mounting, vertical mounting, LED, rated luminous flux: 3.930lm, luminous efficacy: 159lm/W, light colour: 840, colour temperature: 4000K, control gear: ECG, with terminal, 3-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 25W, housing, of glass-fibre reinforced plastic, uncoated, bright grey, incl. chain hanger, length: 1.299mm, width: 90mm, height: 88mm, clip for enclosure, of stainless steel (V2A), ceiling mounting element, of stainless steel (V2A), chain hanger, of stainless steel (V2A), protection rating (complete): IP66, insulation class (complete): insulation class I (protective earthing), certification: CE, ENEC, VDE, UKCA, protection symbol: D, impact resistance: IK08, permissible operating ambient temperature: -25..+35°C, standard: EN 50419, EN 60598-2-1, corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry, for indoor or canopied outdoor use, no direct snow, no direct sun, no direct rain, LABS conformity tested according to VDMA 24364:2018-05, contact your sales advisor before using the luminaires in applications with unclear chemical exposure, large temperature fluctuations or condensation-forming humidity, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
![](/asset/de_en/%2A/PNG500A/1000285/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000269/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000249/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000145/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000175/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000176/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000173/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000149/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000166/51FG207L430K.png)
![](/asset/de_en/%2A/PNG500A/1000177/51FG207L430K.png)
Produktdetails
![](/asset/de_en/%2A/LIDPIC/1313794/51FG207L430K_1xLED_59394_20.jpg)
Lichttechnischer Prüfbefund / Planungsdaten
Monsun® 21 parking
LED, ECG, enclosure, below, suspended mounting, surface-mounted, horizontal mounting, vertical mounting, L= 1299mm
Bestellnr.: 51FG207L430K
