Silica® 21, extremely wide distribution, ELDACON® P, prismatic diffuser, Light colour 830, UGR ≤ 19, DALI 2, traffic white (RAL 9016)
SchließenArticle office luminaire

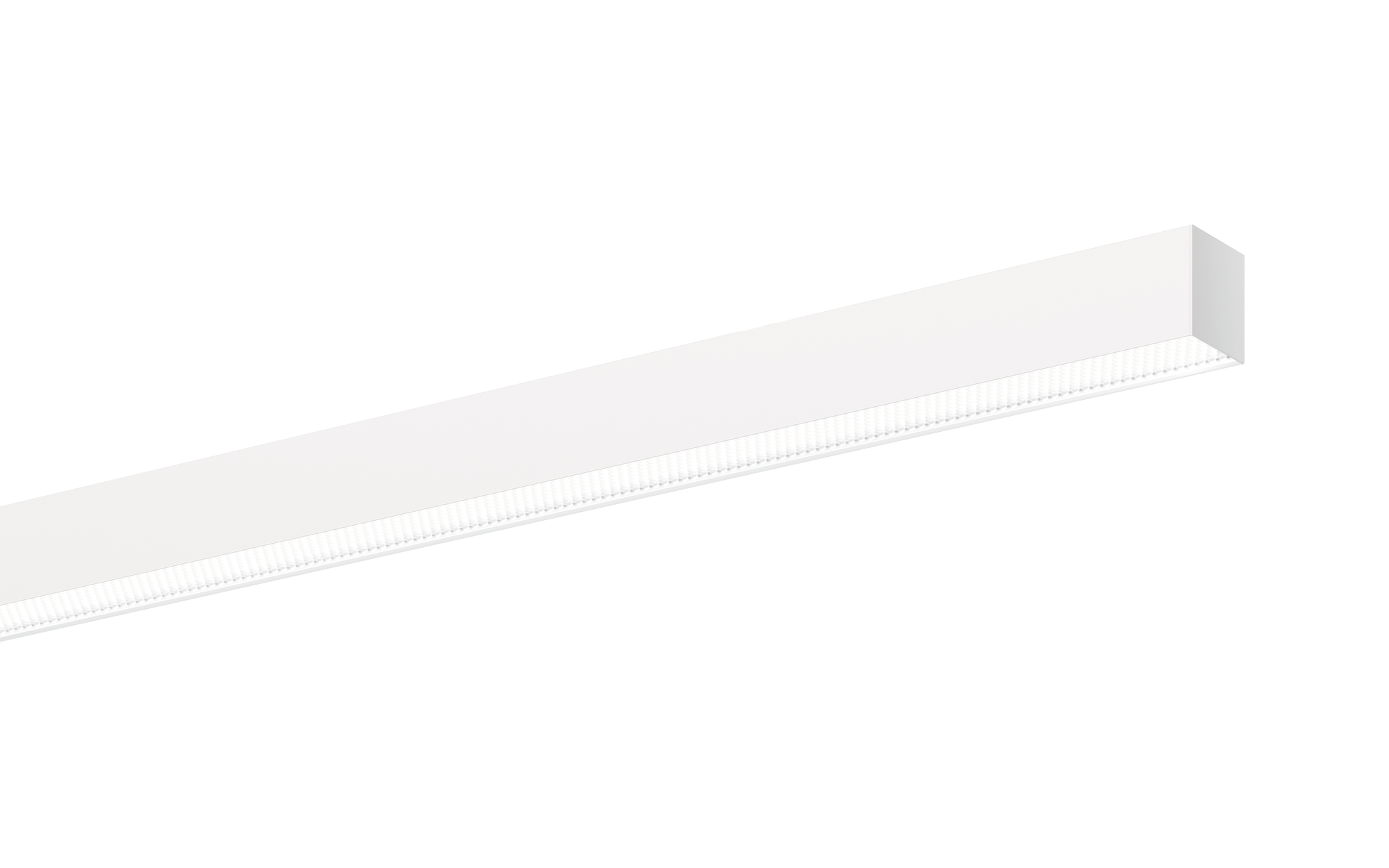

Product name Silica® 21
Lamp LED
Rated luminous flux 3280lm
Luminous efficacy 136lm/W
Colour temperature 3000K
Colour rendering CRI > 80
Rated input power 24.1W
Service life 50000h (L85/B50) at AT = 25°C, 70000h (L80/B50) at AT = 25°C
Protection rating IP20
Weight 3.0kg

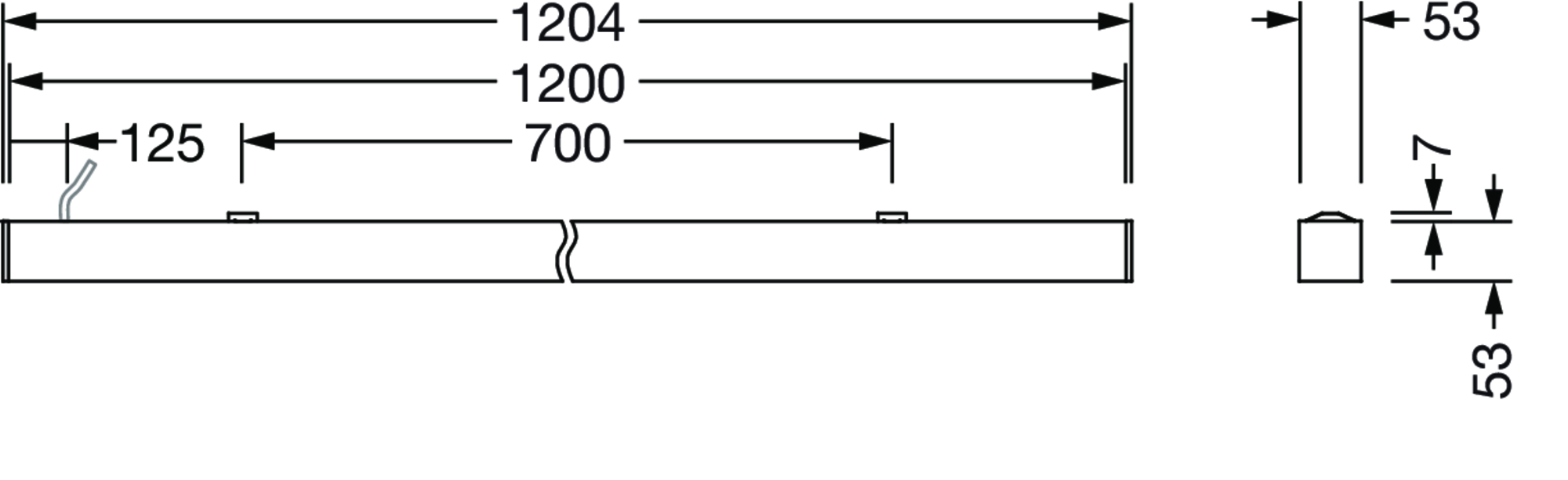

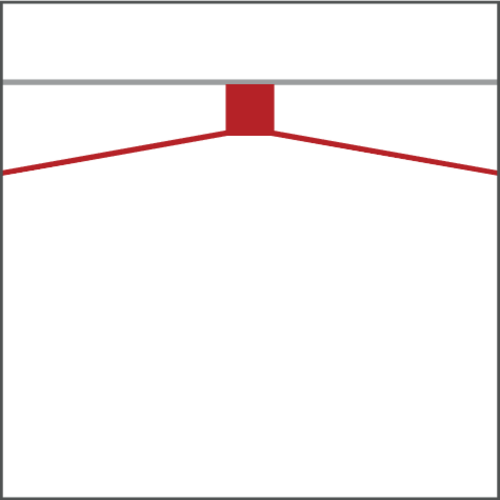

Silica® 21, office luminaire, primary optical cover: prismatic diffuser, of PMMA, CAT 2 (L<= 3000cd/m²), light emission: direct distribution, primary light characteristic: symmetric, installation type: surface-mounted, LED, rated luminous flux: 3.280lm, luminous efficacy: 136lm/W, light colour: 830, colour temperature: 3000K, with terminal, 3+2-pole, max. 2.5mm², mains connection: 220..240V, AC, 50/60Hz, rated input power: 24.1W, luminaire housing, of aluminium, traffic white (RAL 9016), length: 1.204mm, width: 53mm, height: 53mm, protection rating (complete): IP20, insulation class (complete): insulation class I (protective earthing), certification: CE, permissible operating ambient temperature: 0..+35°C, standard: EN 50419, packaging unit: 1 piece
Downloads
Technische Produktinformationen
Daten für Anwendungsprogramme
![](/asset/de_en/%2A/PNG500A/1000284/51MX23DA34WB.png)
![](/asset/de_en/%2A/PNG500A/1000152/51MX23DA34WB.png)
![](/asset/de_en/%2A/PNG500A/1000166/51MX23DA34WB.png)
![](/asset/de_en/%2A/PNG500A/1000177/51MX23DA34WB.png)
Produktdetails
![](/asset/de_en/%2A/LIDPIC/1251934/51MX23DA34WB_1xLED_59330_237.jpg)
Lichttechnischer Prüfbefund / Planungsdaten
Silica® 21
office luminaire, traffic white (RAL 9016), DALI 2, 3280lm, 830, 1204x53mm, Connection: terminal
Bestellnr.: 51MX23DA34WB
