Lantern iQ
Every city is different - but each wants to be attractive and welcoming. SITECO town and park luminaires can make a decisive contribution to giving your town that certain flair. Our luminaires are effective day and night, set aesthetic accents and can be perfectly combined with designer masts. But the best thing is their inner workings: All luminaires contain the latest generation of Module 540, which is also perfectly suited as a refurbishment solution for old systems. Because this module has it all: for example iQ, our new, patented luminaire electronics, which equips your light with a multitude of new functions and future-oriented control options. In this way, SITECO not only transports cherished design classics into the LED age, but directly into the future.
Flexible and modular into the future of city lighting
Lantern Classic with Module 540 iQ (as single components)

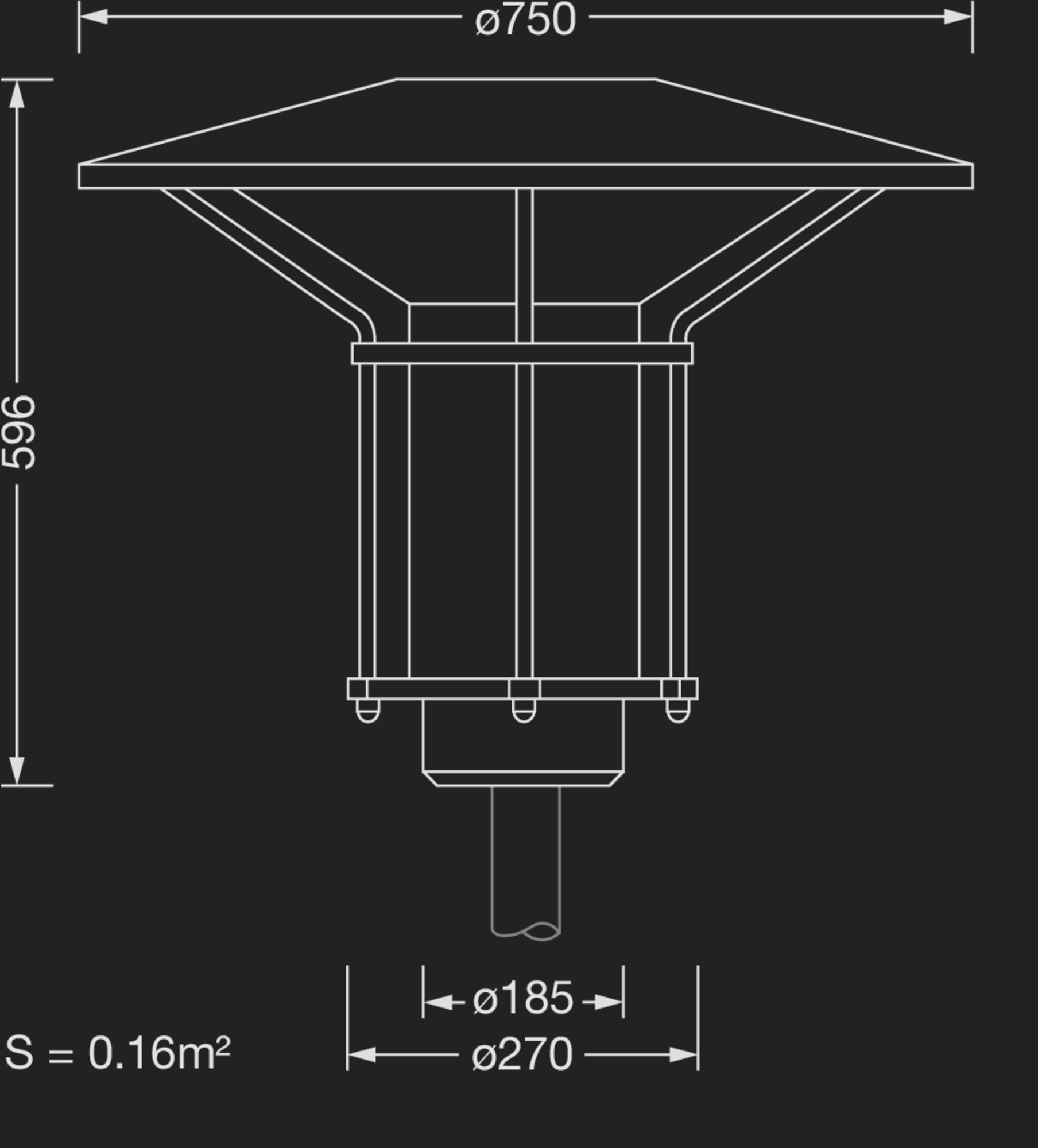

Intro Produktfamilie![](/asset/de_en/en/PNG2000AN/1000771/dd-1460.png)
Kenndaten
Article mast luminaire
Lighting effect direct asymmetric wide distribution; direct highly asymmetric extremely wide distribution; direct symmetric wide distribution
Light distribution ST1.2a; P1.0a; PL1.2s
Net luminous flux 1360lm to 4430lm
Colour temperature 2700K; 2200K; 3000K; 4000K
Control iQ Street-Remote
Protection rating IP65
Insulation class insulation class II (safety insulation)
Besonderheiten
Konfiguration & Datenblätter
- please order mast reducer separately if required
- Setting the luminaire with Street-Remote: with the SITECO iQ app on the SITECO iQ handheld (5EA6HBR02) or your own smart phone
- SITECO offers the SITECO Connect Group Control (230V or 12/24V) product to use the Smart Wire function '10 levels'. A communication module is also available with which remote access is possible and radio clock functionality is provided.
- Smart Interface luminaires currently without iQ functionality
Ergebnisse
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2200K | CRI > 70 | 1360lm | P1.0a | iQ Street-Remote | 13 | 13 | 6 | 14.7 | 2310.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2200K | CRI > 70 | 3480lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2382.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2200K | CRI > 70 | 1380lm | ST1.2a | iQ Street-Remote | 13 | 13 | 6 | 14.7 | 2310.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2200K | CRI > 70 | 3510lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2382.00 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2200K | CRI > 70 | 2670lm | PL1.2s | iQ Street-Remote | 24 | 26 | 12 | 14.7 | 2453.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2700K | CRI > 70 | 1360lm | P1.0a | iQ Street-Remote | 12 | 12 | 5 | 14.7 | 2310.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2700K | CRI > 70 | 3780lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2382.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2700K | CRI > 70 | 1380lm | ST1.2a | iQ Street-Remote | 12 | 12 | 6 | 14.7 | 2310.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2700K | CRI > 70 | 3800lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2382.00 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
2700K | CRI > 70 | 2970lm | PL1.2s | iQ Street-Remote | 22 | 23 | 11 | 14.7 | 2453.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 1360lm | P1.0a | iQ Street-Remote | 11 | 11 | 5 | 14.7 | 2183.70 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 4210lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2257.30 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 1380lm | ST1.2a | iQ Street-Remote | 11 | 11 | 5 | 14.7 | 2183.70 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 4240lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2257.30 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 70 | 2670lm | PL1.2s | iQ Street-Remote | 19 | 21 | 10 | 14.7 | 2257.30 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 1360lm | P1.0a | iQ Street-Remote | 10 | 10 | 5 | 14.7 | 2274.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 4400lm | P1.0a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2346.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 1380lm | ST1.2a | iQ Street-Remote | 10 | 10 | 5 | 14.7 | 2274.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 4430lm | ST1.2a | iQ Street-Remote | 34 | 36 | 15 | 14.7 | 2346.00 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Colour temperature | Colour rendering | Luminous flux | Light distribution | Control | Pnom begin service life | Pnom end service life | Pred at 50% lumin. flux | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 70 | 2670lm | PL1.2s | iQ Street-Remote | 19 | 20 | 9 | 14.7 | 2418.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5245BF14HGTIN (EAN): 4058352834459
Colour temperature | 2200K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1360lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 13 |
Pnom end service life | 13 |
Pred at 50% lumin. flux | 6 |
Wt. (kg) | 14.7 |
Price (EUR) | 2310.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5245BF14HPGTIN (EAN): 4058352834480
Colour temperature | 2200K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 3480lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2382.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5245AF14HGTIN (EAN): 4058352834411
Colour temperature | 2200K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1380lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 13 |
Pnom end service life | 13 |
Pred at 50% lumin. flux | 6 |
Wt. (kg) | 14.7 |
Price (EUR) | 2310.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5245AF14HPGTIN (EAN): 4058352834435
Colour temperature | 2200K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 3510lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2382.00 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5245CF14HGTIN (EAN): 4058352834497
Colour temperature | 2200K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 2670lm |
Light distribution | PL1.2s |
Control | iQ Street-Remote |
Pnom begin service life | 24 |
Pnom end service life | 26 |
Pred at 50% lumin. flux | 12 |
Wt. (kg) | 14.7 |
Price (EUR) | 2453.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5245NF14HGTIN (EAN): 4058352834671
Colour temperature | 2700K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1360lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 12 |
Pnom end service life | 12 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 14.7 |
Price (EUR) | 2310.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5245NF14HPGTIN (EAN): 4058352834695
Colour temperature | 2700K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 3780lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2382.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5245MF14HGTIN (EAN): 4058352834633
Colour temperature | 2700K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1380lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 12 |
Pnom end service life | 12 |
Pred at 50% lumin. flux | 6 |
Wt. (kg) | 14.7 |
Price (EUR) | 2310.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5245MF14HPGTIN (EAN): 4058352834664
Colour temperature | 2700K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 3800lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2382.00 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5245OF14HGTIN (EAN): 4058352834718
Colour temperature | 2700K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 2970lm |
Light distribution | PL1.2s |
Control | iQ Street-Remote |
Pnom begin service life | 22 |
Pnom end service life | 23 |
Pred at 50% lumin. flux | 11 |
Wt. (kg) | 14.7 |
Price (EUR) | 2453.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5245FF14HGTIN (EAN): 4058352635858
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1360lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 11 |
Pnom end service life | 11 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 14.7 |
Price (EUR) | 2183.70 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5245FF14HPGTIN (EAN): 4058352834534
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 4210lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2257.30 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5245EF14HGTIN (EAN): 4058352635841
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1380lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 11 |
Pnom end service life | 11 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 14.7 |
Price (EUR) | 2183.70 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5245EF14HPGTIN (EAN): 4058352834510
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 4240lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2257.30 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5245JF14HGTIN (EAN): 4058352635896
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 2670lm |
Light distribution | PL1.2s |
Control | iQ Street-Remote |
Pnom begin service life | 19 |
Pnom end service life | 21 |
Pred at 50% lumin. flux | 10 |
Wt. (kg) | 14.7 |
Price (EUR) | 2257.30 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, standard
Order No.: 5XA5245LF14HGTIN (EAN): 4058352834596
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1360lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 10 |
Pnom end service life | 10 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 14.7 |
Price (EUR) | 2274.00 |
Lantern Classic iQ, P1.0a, direct highly asymmetric extremely wide distribution, transparent, Power
Order No.: 5XA5245LF14HPGTIN (EAN): 4058352834619
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 4400lm |
Light distribution | P1.0a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2346.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, standard
Order No.: 5XA5245KF14HGTIN (EAN): 4058352834558
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 1380lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 10 |
Pnom end service life | 10 |
Pred at 50% lumin. flux | 5 |
Wt. (kg) | 14.7 |
Price (EUR) | 2274.00 |
Lantern Classic iQ, ST1.2a, direct asymmetric wide distribution, transparent, Power
Order No.: 5XA5245KF14HPGTIN (EAN): 4058352834572
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 4430lm |
Light distribution | ST1.2a |
Control | iQ Street-Remote |
Pnom begin service life | 34 |
Pnom end service life | 36 |
Pred at 50% lumin. flux | 15 |
Wt. (kg) | 14.7 |
Price (EUR) | 2346.00 |
Lantern Classic iQ, PL1.2s, direct symmetric wide distribution, transparent, standard
Order No.: 5XA5245RF14HGTIN (EAN): 4058352834732
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 70 |
Luminous flux | 2670lm |
Light distribution | PL1.2s |
Control | iQ Street-Remote |
Pnom begin service life | 19 |
Pnom end service life | 20 |
Pred at 50% lumin. flux | 9 |
Wt. (kg) | 14.7 |
Price (EUR) | 2418.00 |
Optionales Zubehör
Order No.: 5XA54000XSGTIN (EAN): 4050737730073 | Alle Details anzeigen |
Order No.: 5XA54000XSAGTIN (EAN): 4058352161326 | Alle Details anzeigen |
Order No.: 5XA54000XBSGTIN (EAN): 4050737971445 | Alle Details anzeigen |
Order No.: 5XA54000XBLGTIN (EAN): 4050737971421 | Alle Details anzeigen |
Order No.: 5XA54000XBXLGTIN (EAN): 4058352415573 | Alle Details anzeigen |
Order No.: 5XA54001XSGTIN (EAN): 4050737754895 | Alle Details anzeigen |
Order No.: 5LA52201XRGTIN (EAN): 4039806232175 | Alle Details anzeigen |
Order No.: 5NY70062DKGTIN (EAN): 4058352552247 | Alle Details anzeigen |
Order No.: 5NY52660XG18GTIN (EAN): 4039806215932 | Alle Details anzeigen |
Order No.: 5NY52650XG18GTIN (EAN): 4039806216694 | Alle Details anzeigen |
Order No.: 5NY52650XG28GTIN (EAN): 4039806215833 | Alle Details anzeigen |
Order No.: 5NY52660XN18GTIN (EAN): 4039806216014 | Alle Details anzeigen |
Order No.: 5NY52650XN18GTIN (EAN): 4039806215857 | Alle Details anzeigen |
Order No.: 5NY52650XN28GTIN (EAN): 4039806215895 | Alle Details anzeigen |
Order No.: 5NC54700XGGTIN (EAN): 4039806180513 | Alle Details anzeigen |
