Licross® 11
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 209lm/W or low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.
Our performance solution: Licross® 11 is our innovative trunking system with maximum efficiency (up to 209lm/W), service life (up to 100,000h) and flexibility
![](/asset/de_en/en/PNG/1007408/impression-2-1.png)
Performance luminaire insert IP40/IP54

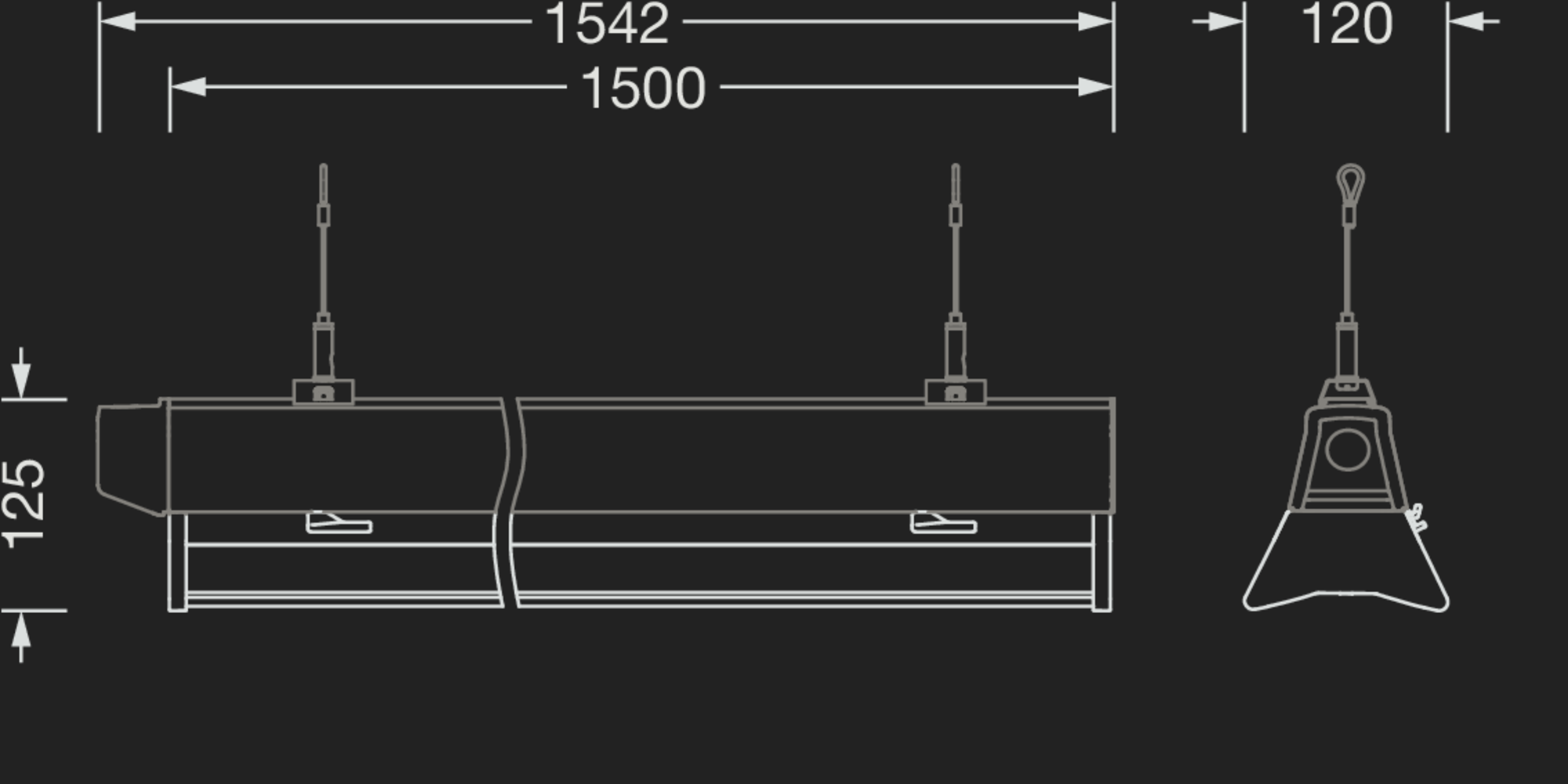

Intro Produktfamilie![](/asset/de_en/en/PNG2000AN/1001523/dd-7.png)
Kenndaten
Article luminaire insert
Protection rating IP40; IP54
Net luminous flux 4520lm to 16020lm
Colour temperature 2700…6500K; 3000K; 4000K; 6500K
Lighting effect direct/indirect symmetric wide distribution
Besonderheiten
Konfiguration & Datenblätter
- please order Licross® trunking rail or trunking rail accessories separately
- with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
- luminaire inserts (AC/DC) suiatble for group and central battery systems according to EN60598-2-22 (even at AC operation)
- With AC/DC luminaire inserts, the power supply can be changed to either mains supply operation L1/L2/L3, emergency supply 1 L´/N´ or emergency supply 2 L´´/N´´ by moving the contacts on the connection block
- with luminaire inserts (AC/DC), luminaires use reduced luminous flux with DC operation (see photometric report for DC operation)
Ergebnisse
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8840 | 49W | 182lm/W | ON/OFF | -25..+35°C | IP54 | 1500 | 3.1 | 288.80 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 9190 | 49 | 55 | 186lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP54 | 1500 | 3.1 | 309.00 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14420 | 78 | 87 | 186lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | IP54 | 1500 | 3.1 | 369.60 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 10110 | 57W | 177lm/W | DALI 2 | -25..+35°C | IP54 | 1500 | 3.1 | 321.20 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 15460 | 87W | 177lm/W | DALI 2 | -25..+30°C | IP54 | 1500 | 3.1 | 381.70 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 10160 | 55W | 184lm/W | ON/OFF Multilumen | -35..+40°C | IP54 | 1500 | 3.1 | 284.80 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 16020 | 87W | 183lm/W | ON/OFF Multilumen | -35..+35°C | IP54 | 1500 | 3.1 | 369.60 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8840 | 49W | 182lm/W | ON/OFF | -25..+35°C | IP40 | 1500 | 3.1 | 272.60 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 9190 | 49 | 55 | 186lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP40 | 1500 | 3.1 | 292.80 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14420 | 78 | 87 | 186lm/W | ON/OFF Multilumen, CLOi | -35..+35°C | IP40 | 1500 | 3.1 | 353.40 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 10110 | 57W | 177lm/W | DALI 2 | -25..+35°C | IP40 | 1500 | 3.1 | 305.00 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 15460 | 87W | 177lm/W | DALI 2 | -25..+30°C | IP40 | 1500 | 3.1 | 365.50 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 10160 | 55W | 184lm/W | ON/OFF Multilumen | -35..+40°C | IP40 | 1500 | 3.1 | 292.80 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 16020 | 87W | 183lm/W | ON/OFF Multilumen | -35..+35°C | IP40 | 1500 | 3.1 | 353.40 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4520 | 24W | 186lm/W | DALI 2 | -25..+45°C | IP54 | 1500 | 3.1 | 321.20 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6500K | CRI > 80 | 14180 | 81W | 174lm/W | DALI 2 | -25..+35°C | IP54 | 1500 | 3.1 | 381.70 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
3000K | CRI > 80 | 5100 | 28.3W | 180lm/W | DALI 2 | -25..+45°C | IP40 | 1500 | 3.1 | 305.00 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4520 | 24W | 186lm/W | DALI 2 | -25..+45°C | IP40 | 1500 | 3.1 | 305.00 |
Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2700..6500K | CRI > 80 | 4700 | 28.9W | 163lm/W | DALI DT8 | -25..+45°C | IP40 | 1500 | 3.1 | 507.00 |
Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2700..6500K | CRI > 80 | 8930 | 56W | 159lm/W | DALI DT8 | -25..+35°C | IP40 | 1500 | 3.1 | 506.90 |
Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
2700..6500K | CRI > 80 | 8930 | 56W | 159lm/W | DALI DT8 | -25..+35°C | IP54 | 1500 | 3.1 | 525.10 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
6500K | CRI > 80 | 8960 | 49 | 55 | 181lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP54 | 1500 | 3.1 | 309.00 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD167N485GGTIN (EAN): 4058352928820
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8840 |
Connected load | 49W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 182lm/W |
Control | ON/OFF |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 288.80 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16CN49XGGTIN (EAN): 4058352928844
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 9190 |
Connected load | |
Pnom (W) begin service life | 49 |
Pnom (W) end service life | 55 |
Luminous efficacy | 186lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 309.00 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16CN4EXMGTIN (EAN): 4058352928868
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14420 |
Connected load | |
Pnom (W) begin service life | 78 |
Pnom (W) end service life | 87 |
Luminous efficacy | 186lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 369.60 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16DN4AXGGTIN (EAN): 4058352928882
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 10110 |
Connected load | 57W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 177lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 321.20 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16DN4FXMGTIN (EAN): 4058352928905
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 15460 |
Connected load | 87W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 177lm/W |
Control | DALI 2 |
ta | -25..+30°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 381.70 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16MN4AXGGTIN (EAN): 4058352928929
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 10160 |
Connected load | 55W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 184lm/W |
Control | ON/OFF Multilumen |
ta | -35..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 284.80 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16MN4GXMGTIN (EAN): 4058352928950
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 16020 |
Connected load | 87W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 183lm/W |
Control | ON/OFF Multilumen |
ta | -35..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 369.60 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM167N485GGTIN (EAN): 4058352929940
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8840 |
Connected load | 49W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 182lm/W |
Control | ON/OFF |
ta | -25..+35°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 272.60 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16CN49XGGTIN (EAN): 4058352929964
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 9190 |
Connected load | |
Pnom (W) begin service life | 49 |
Pnom (W) end service life | 55 |
Luminous efficacy | 186lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+40°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 292.80 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16CN4EXMGTIN (EAN): 4058352929988
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14420 |
Connected load | |
Pnom (W) begin service life | 78 |
Pnom (W) end service life | 87 |
Luminous efficacy | 186lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+35°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 353.40 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16DN4AXGGTIN (EAN): 4058352930014
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 10110 |
Connected load | 57W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 177lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 305.00 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16DN4FXMGTIN (EAN): 4058352930021
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 15460 |
Connected load | 87W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 177lm/W |
Control | DALI 2 |
ta | -25..+30°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 365.50 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16MN4AXGGTIN (EAN): 4058352930045
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 10160 |
Connected load | 55W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 184lm/W |
Control | ON/OFF Multilumen |
ta | -35..+40°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 292.80 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16MN4GXMGTIN (EAN): 4058352930069
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 16020 |
Connected load | 87W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 183lm/W |
Control | ON/OFF Multilumen |
ta | -35..+35°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 353.40 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16DN445GGTIN (EAN): 4058352965139
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4520 |
Connected load | 24W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 186lm/W |
Control | DALI 2 |
ta | -25..+45°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 321.20 |
Licross® 11 Performance HO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16DN6EXMGTIN (EAN): 4069025012821
Colour temperature | 6500K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14180 |
Connected load | 81W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 174lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 381.70 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16DN35XGGTIN (EAN): 4069025012746
Colour temperature | 3000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 5100 |
Connected load | 28.3W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 180lm/W |
Control | DALI 2 |
ta | -25..+45°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 305.00 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16DN445GGTIN (EAN): 4069025012739
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4520 |
Connected load | 24W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 186lm/W |
Control | DALI 2 |
ta | -25..+45°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 305.00 |
Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16TNT45XGTIN (EAN): 4058352054406
Colour temperature | 2700..6500K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4700 |
Connected load | 28.9W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 163lm/W |
Control | DALI DT8 |
ta | -25..+45°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 507.00 |
Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC
Order No.: 51TM16TNT85XGTIN (EAN): 4069025021670
Colour temperature | 2700..6500K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8930 |
Connected load | 56W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 159lm/W |
Control | DALI DT8 |
ta | -25..+35°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 506.90 |
Licross® 11 Performance TW, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16TNT85XGTIN (EAN): 4058352020296
Colour temperature | 2700..6500K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8930 |
Connected load | 56W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 159lm/W |
Control | DALI DT8 |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 525.10 |
Licross® 11 Performance MO, with lever catch, symmetric wide distribution, AC
Order No.: 51TD16CN69XGGTIN (EAN): 4069025113795
Colour temperature | 6500K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8960 |
Connected load | |
Pnom (W) begin service life | 49 |
Pnom (W) end service life | 55 |
Luminous efficacy | 181lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 3.1 |
Price (EUR) | 309.00 |
