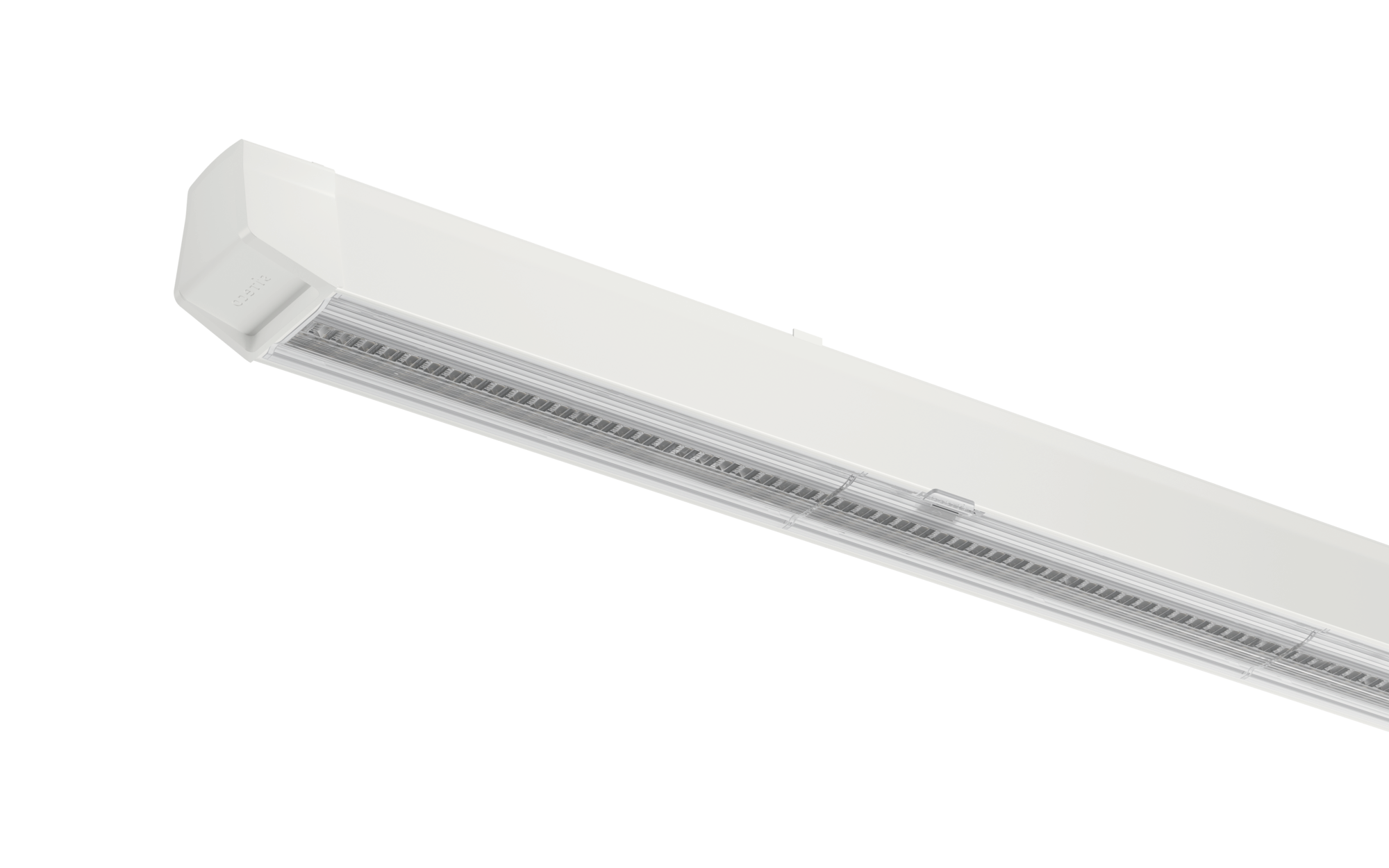

Licross® 21
45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to cameras and data transmission open up a broad horizon of applications far from lighting, which create additional added value.
Our core portfolio: Licross® 21 is our trunking system with the highest standards of efficiency (up to 190lm/W), service life (up to 75,000h) and flexibility for your project
![](/asset/de_en/en/PNG/1007408/impression-407-1.png)
Produkttypen
![](/asset/de_en/%2A/PNG/1005383/51TR1JE.png)

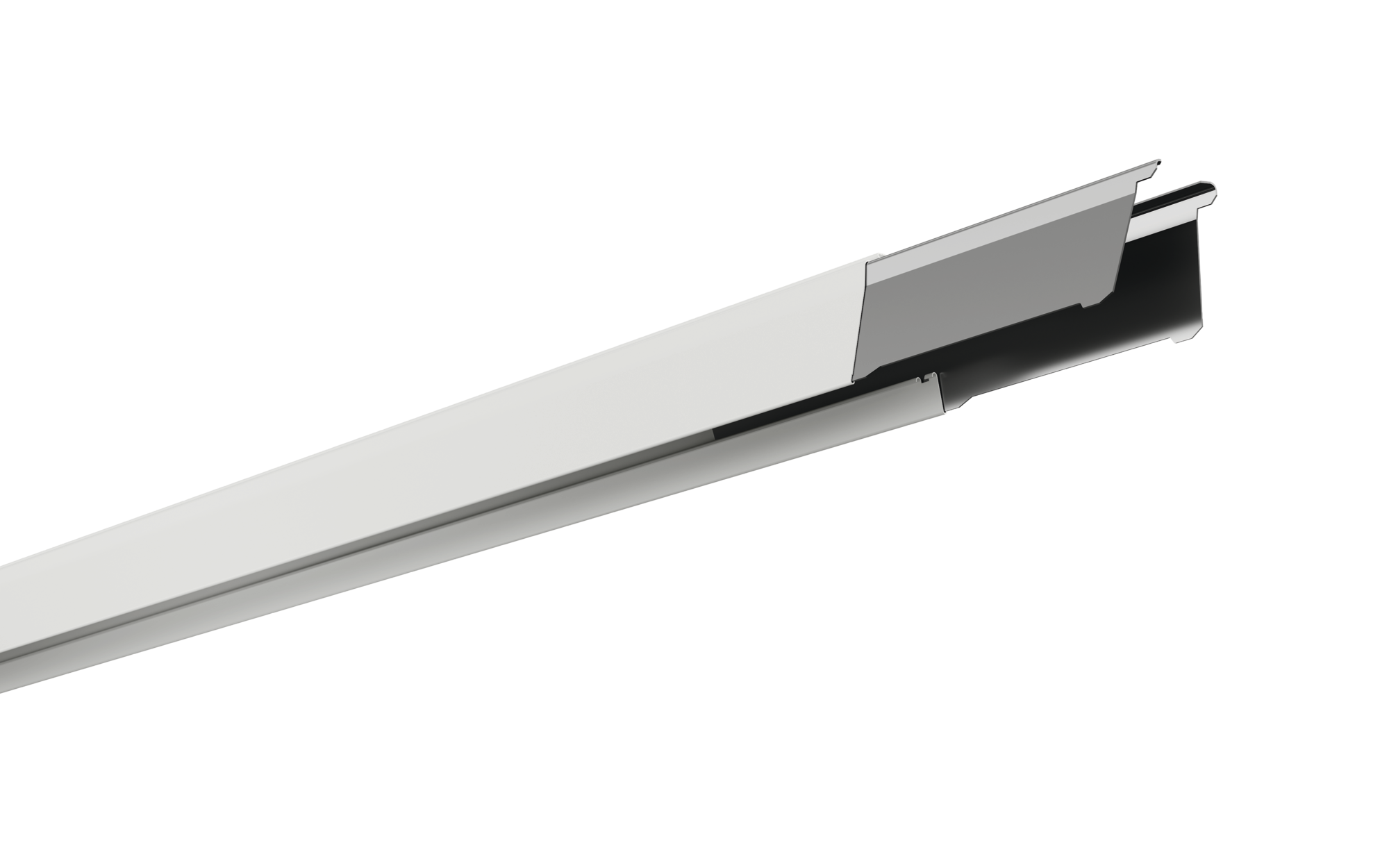

trunking rail
![](/asset/de_en/%2A/PNG/1296929/52TE107N485G.png)

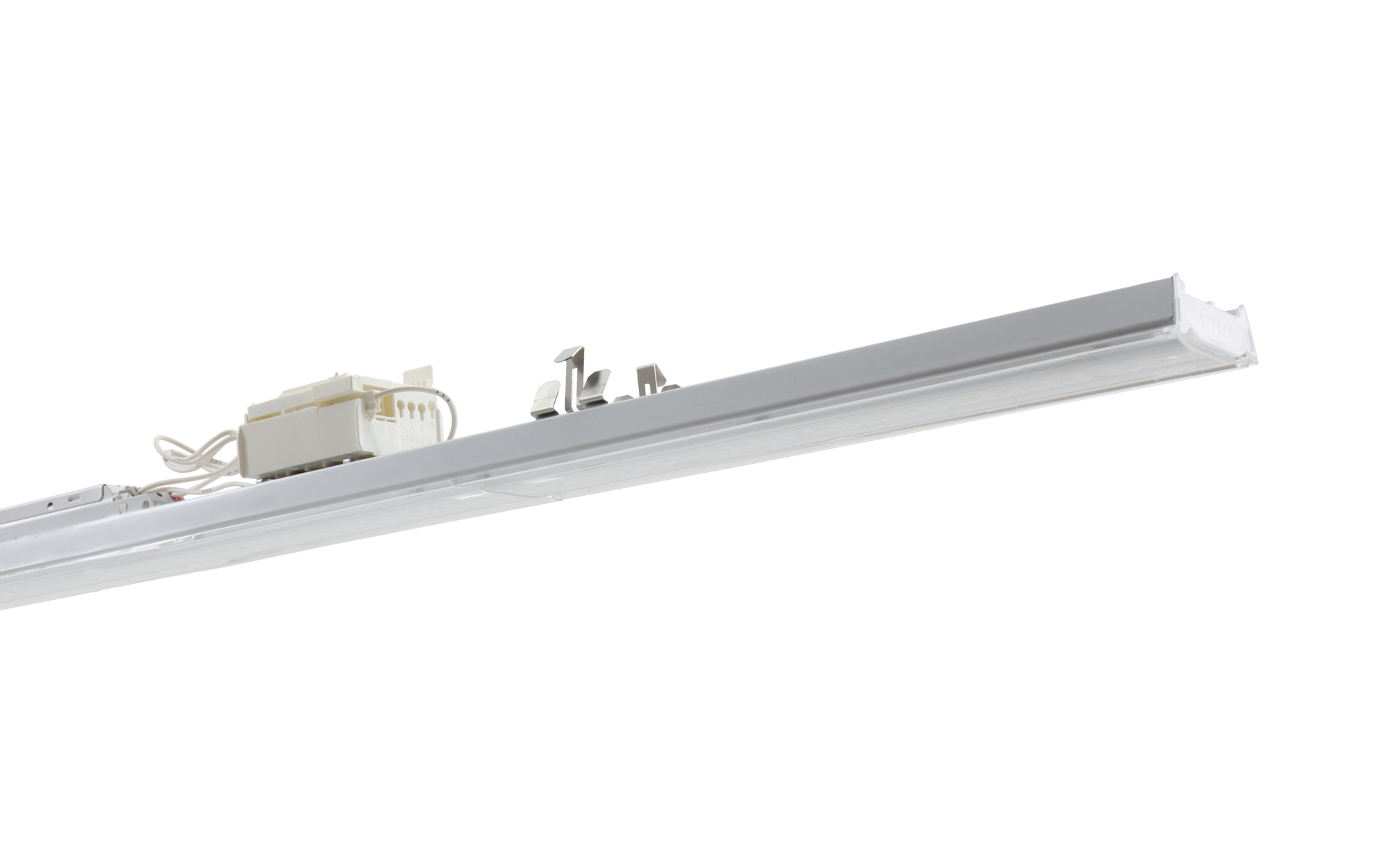

Recessed luminaire insert IP40/IP54
![](/asset/de_en/%2A/PNG/1313665/52TL1D7N44XG.png)

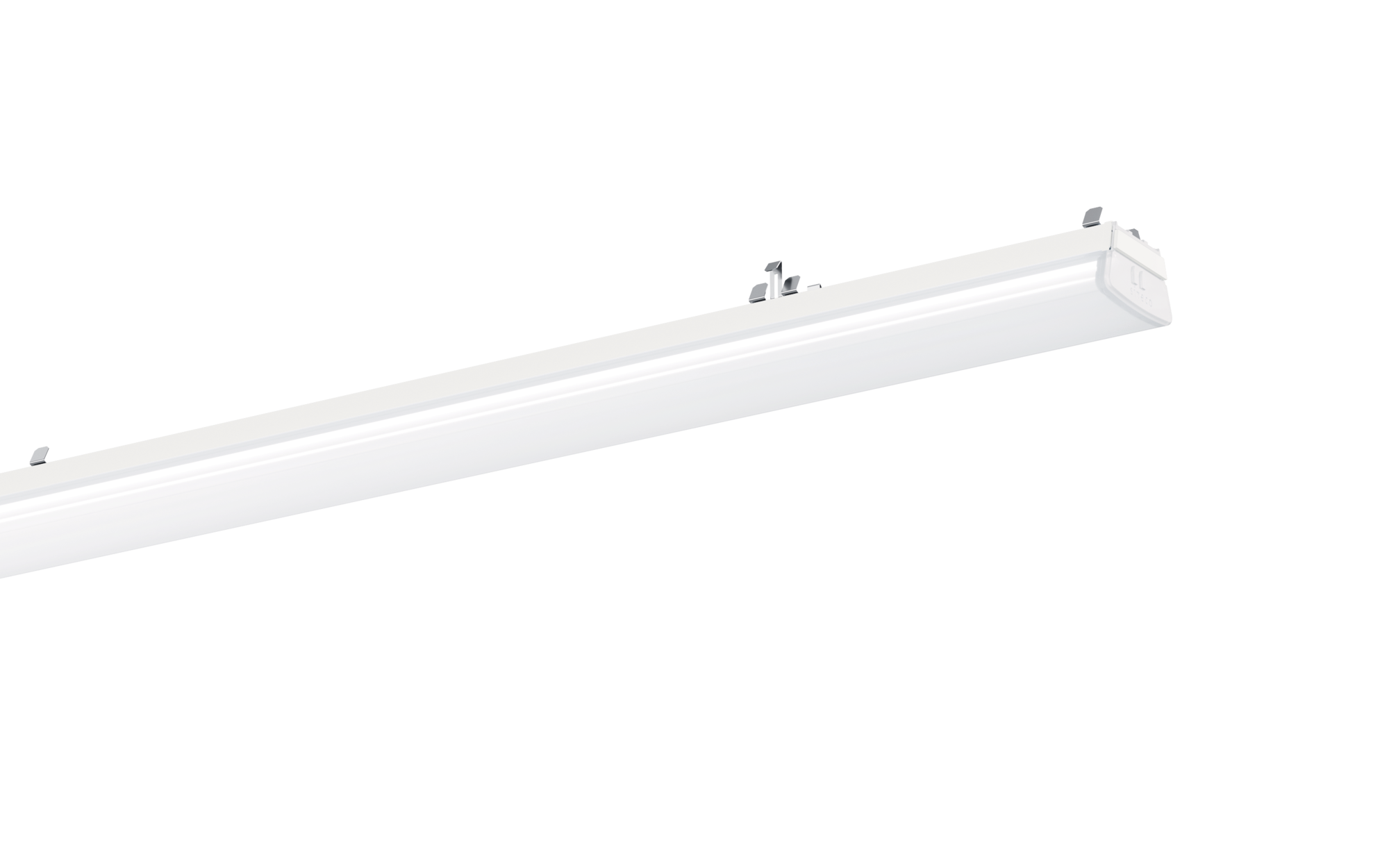

Opal luminaire insert IP40/IP54
![](/asset/de_en/%2A/PNG/1256149/52TD117N485G.png)
Protected luminaire insert IP54/IP64
![](/asset/de_en/%2A/PNG/1256152/52TD167N445G.png)

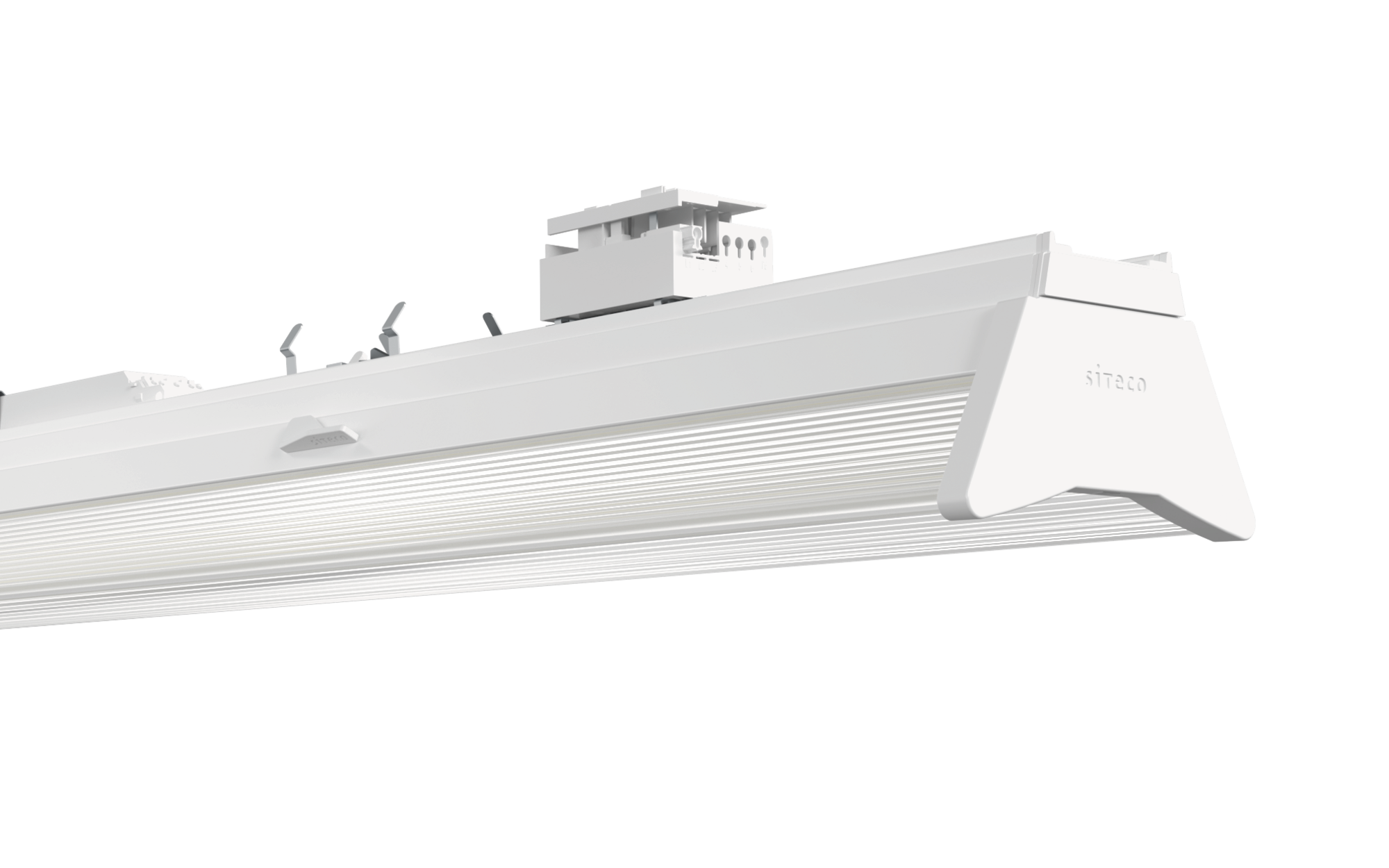

Performance luminaire insert IP40/IP54
![](/asset/de_en/%2A/PNG/1277280/51TS12DN4ZM00581XX.png)

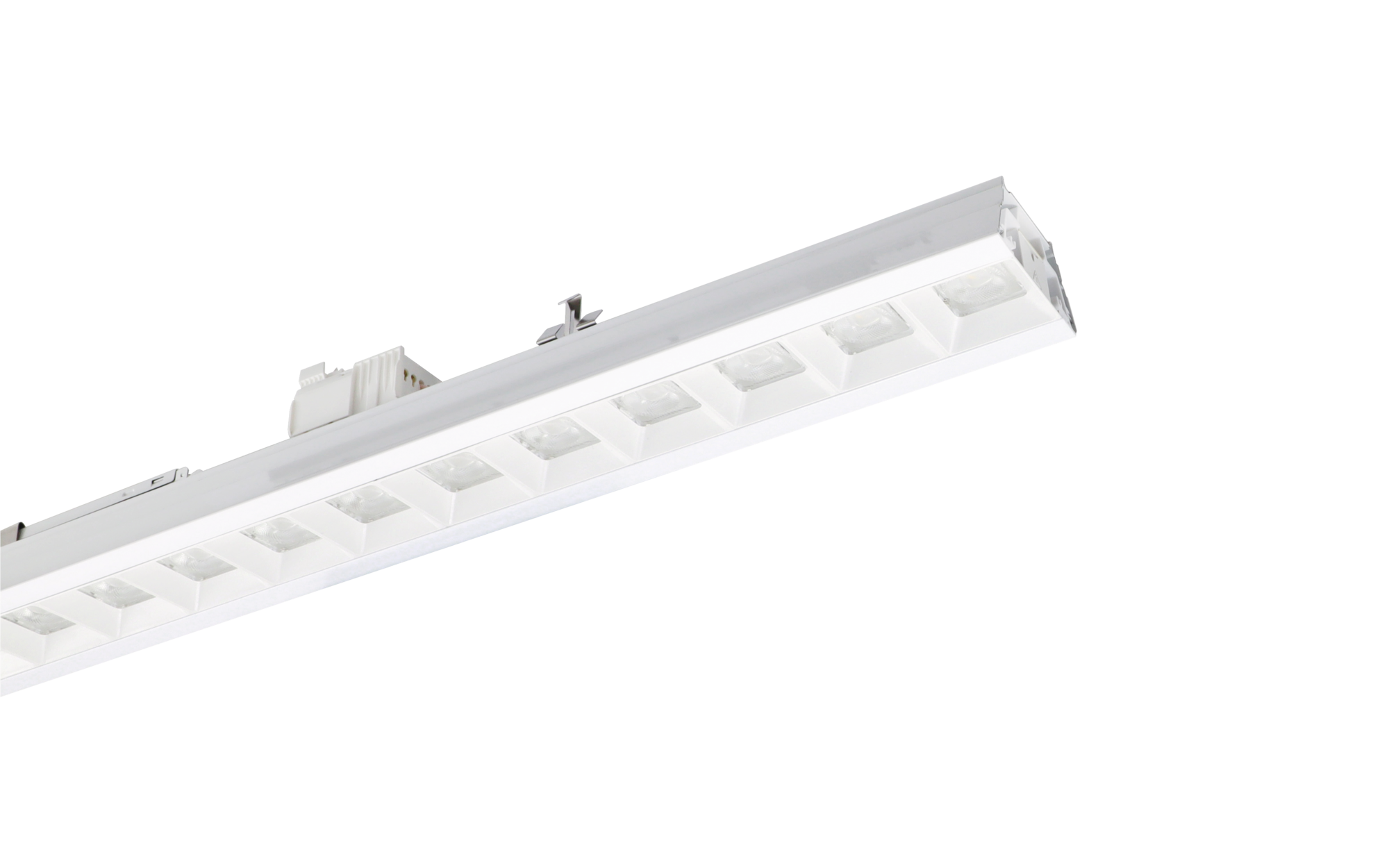

Silica® luminaire insert IP40
![](/asset/de_en/%2A/PNG/1003847/56TL1M.png)

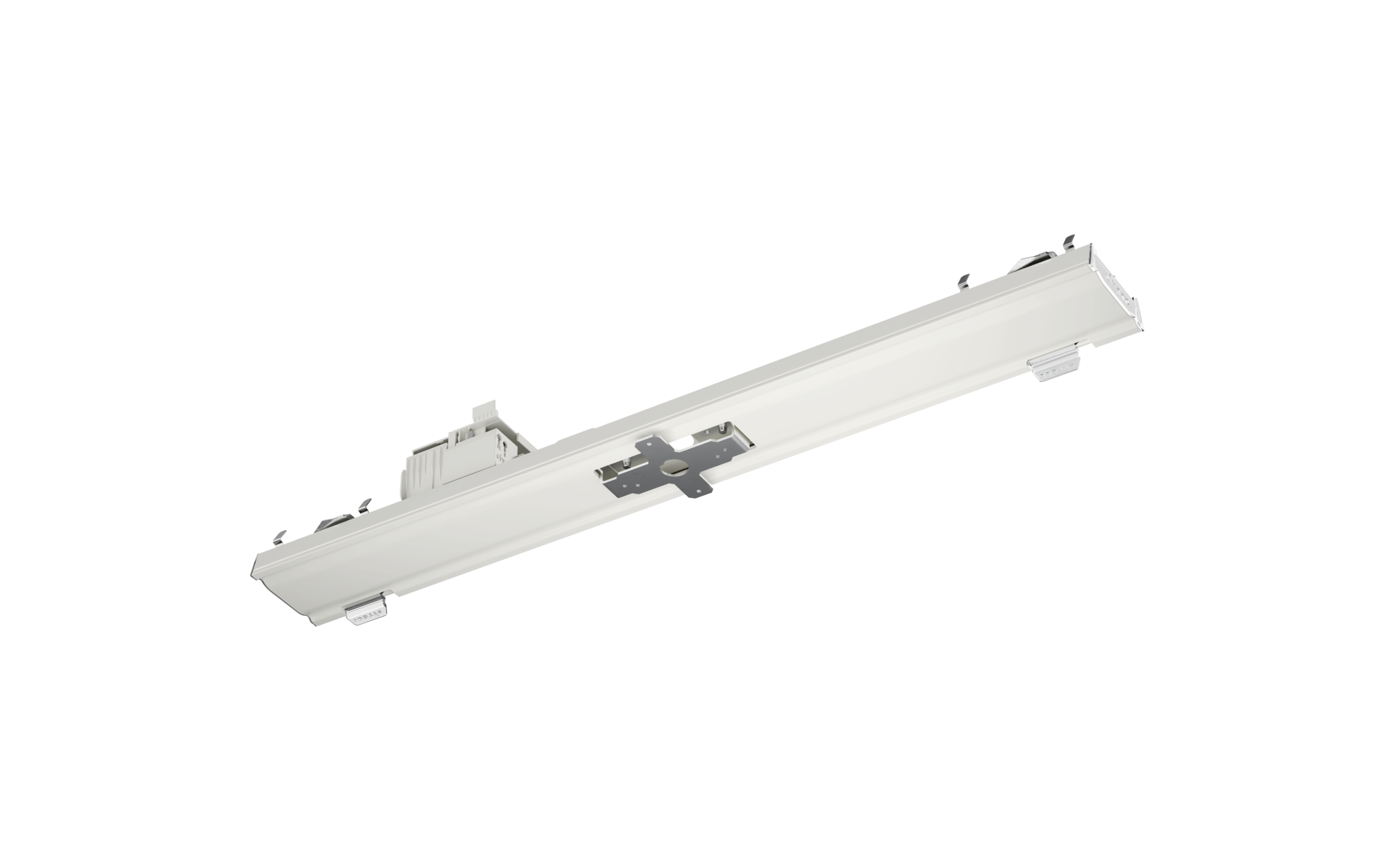

functional insert
![](/asset/de_en/%2A/PNG/1251805/56TL117C4X31.png)

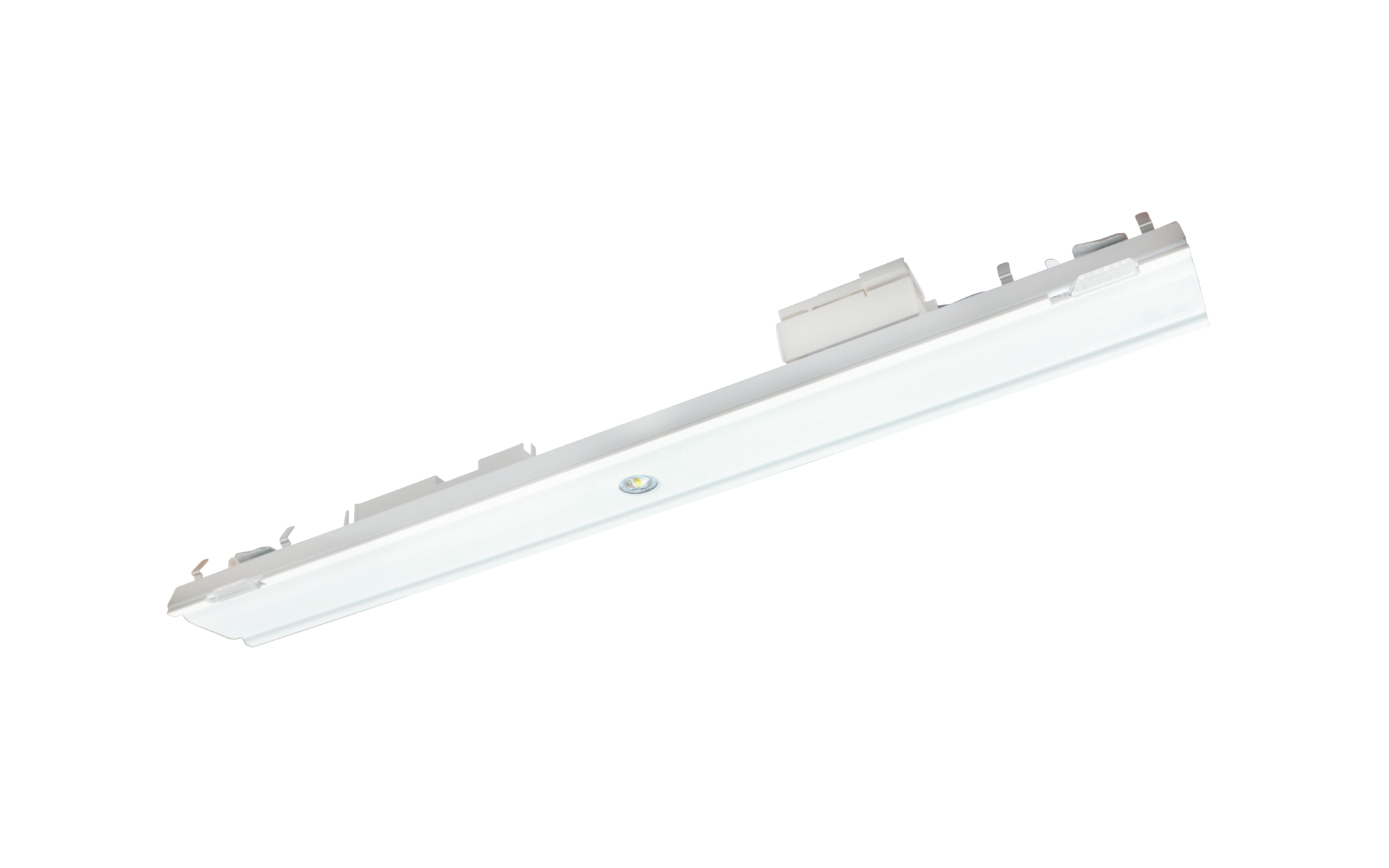

emergency lighting luminaire insert IP40
![](/asset/de_en/%2A/PNG/1004098/51TR1C0-51HLA2D24MLB-59TP1S.png)
Highbay 21 for rail IP64
![](/asset/de_en/%2A/PNG/1242813/51FT10MN4A0ATR2.png)

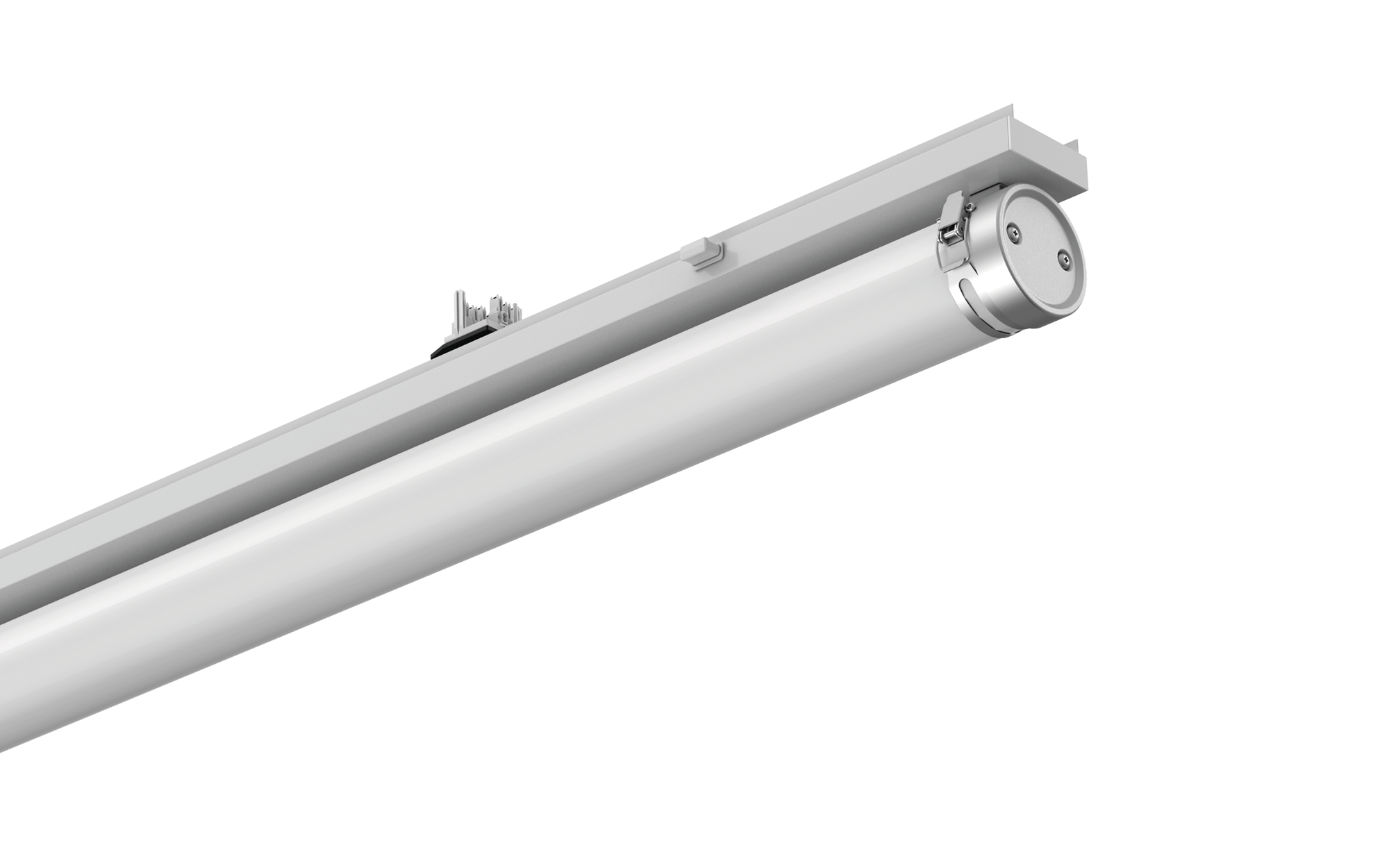

Monsun® 31 for Licross®
![](/asset/de_en/%2A/PNG/1245721/51SL127A43B.png)

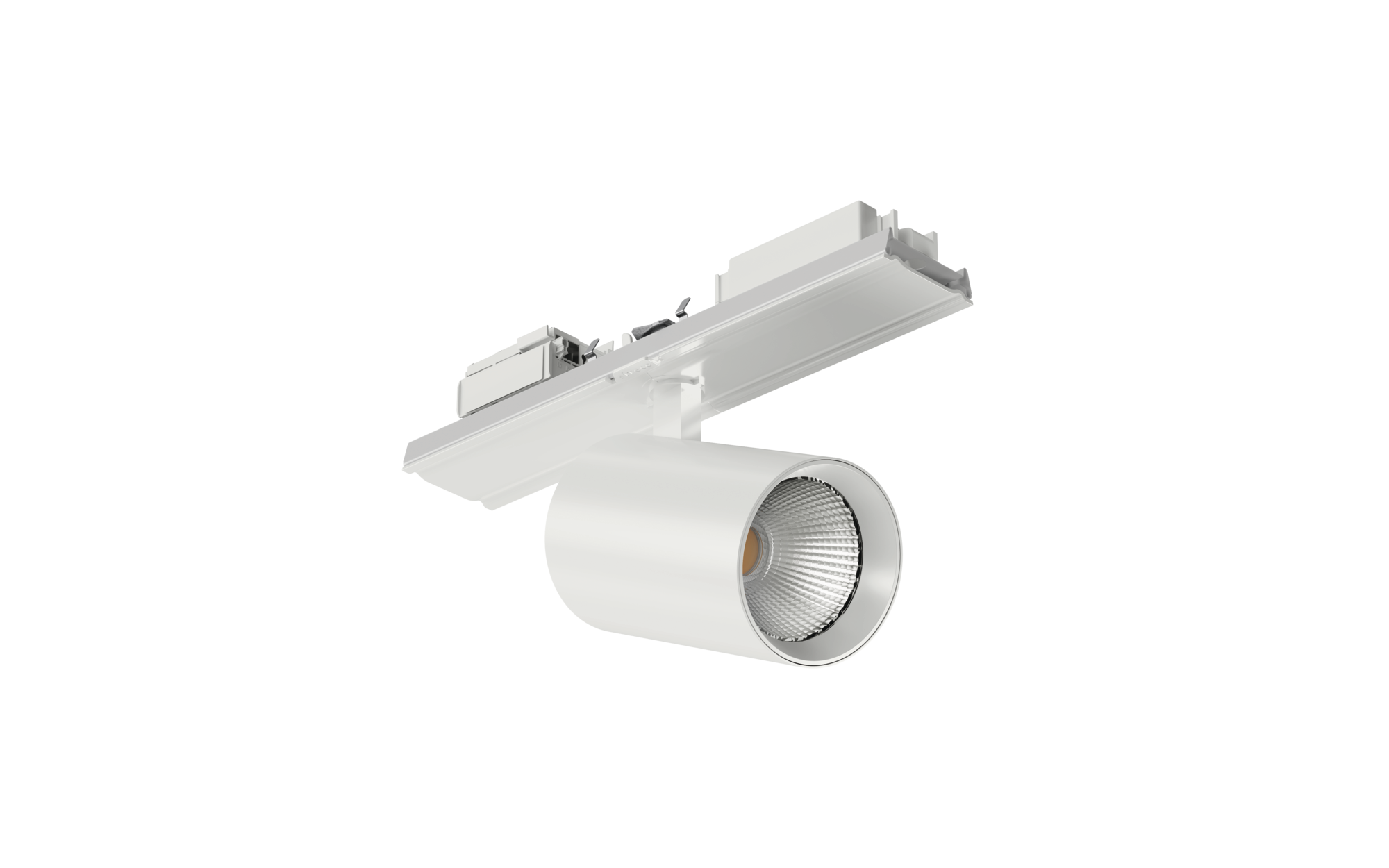

Spot 31 for Licross®
Opal luminaire insert IP40/IP54

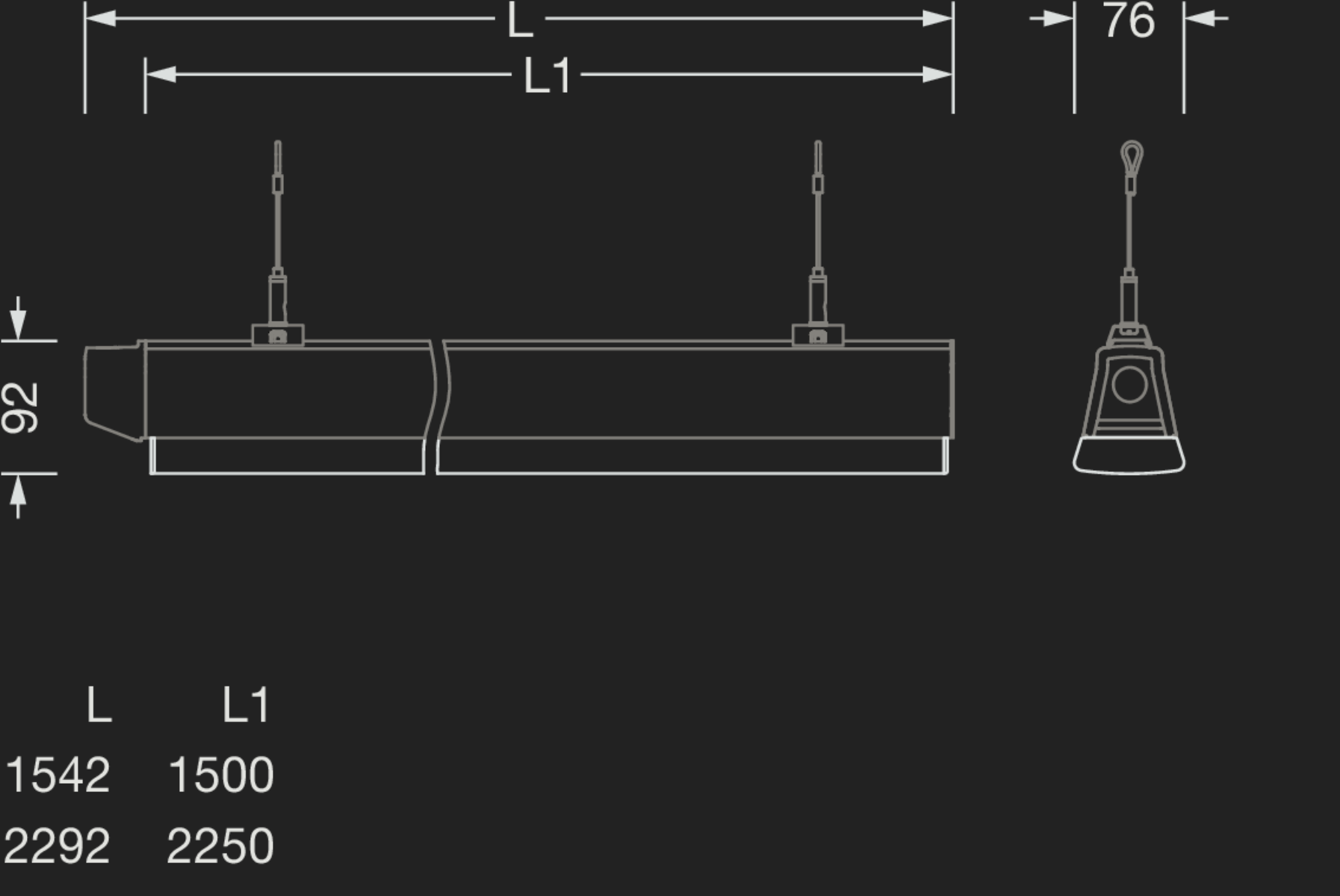

Intro Produktfamilie![](/asset/de_en/en/PNG2000AN/1319680/dd-1740.png)
Kenndaten
Article luminaire insert
Protection rating IP40; IP54
Net luminous flux 2750lm to 22050lm
Colour temperature 4000K
Lighting effect direct symmetric diffuse distribution, with ceiling illumination
Besonderheiten
Konfiguration & Datenblätter
- please order Licross® trunking rail or trunking rail accessories separately
- versions with colour temperature 3000K, 5000K or 6500K on request
- with ceiling surface mounting: reducing of maximum allowable ambient temperature of 5°C
Ergebnisse
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4400 | 25W | 178lm/W | ON/OFF | -35..+50°C | IP54 | 1500 | 1.4 | 222.20 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6200 | 35W | 178lm/W | ON/OFF | -35..+50°C | IP54 | 1500 | 1.4 | 222.20 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8360 | 48W | 175lm/W | ON/OFF | -35..+40°C | IP54 | 1500 | 1.4 | 222.20 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8780 | 50 | 61 | 176lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP54 | 1500 | 1.4 | 242.40 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 12300 | 68 | 83 | 180lm/W | ON/OFF Multilumen, CLOi | -35..+30°C | IP54 | 1500 | 1.4 | 305.00 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4500 | 26W | 174lm/W | DALI 2 | -25..+45°C | IP54 | 1500 | 1.4 | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6320 | 36W | 175lm/W | DALI 2 | -25..+40°C | IP54 | 1500 | 1.4 | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 9750 | 58W | 168lm/W | DALI 2 | -25..+35°C | IP54 | 1500 | 1.4 | 254.50 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14560 | 85W | 172lm/W | DALI 2 | -25..+30°C | IP54 | 1500 | 1.4 | 317.10 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 9500 | 54W | 177lm/W | DALI 2 | -25..+40°C | IP54 | 2250 | 2.2 | 369.60 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14620 | 85W | 171lm/W | DALI 2 | -25..+35°C | IP54 | 2250 | 2.2 | 369.60 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 22050 | 126W | 176lm/W | DALI 2 | -40..+30°C | IP54 | 2250 | 2.2 | 408.00 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6270 | 35W | 179lm/W | ON/OFF Multilumen | -35..+50°C | IP54 | 1500 | 1.4 | 242.40 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 10420 | 61W | 172lm/W | ON/OFF Multilumen | -35..+40°C | IP54 | 1500 | 1.4 | 242.40 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14660 | 83W | 176lm/W | ON/OFF Multilumen | -35..+30°C | IP54 | 1500 | 1.4 | 305.00 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4500 | 26 | 30 | 174lm/W | DALI 2, CLO | -25..+45°C | IP54 | 1500 | 1.4 | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6500 | 38 | 45 | 172lm/W | DALI 2, CLO | -25..+40°C | IP54 | 1500 | 1.4 | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8000 | 47 | 56 | 171lm/W | DALI 2, CLO | -25..+35°C | IP54 | 1500 | 1.4 | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4400 | 25W | 178lm/W | ON/OFF | -35..+50°C | IP40 | 1500 | 1.4 | 214.10 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6200 | 35W | 178lm/W | ON/OFF | -35..+50°C | IP40 | 1500 | 1.4 | 214.10 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8360 | 48W | 175lm/W | ON/OFF | -35..+40°C | IP40 | 1500 | 1.4 | 214.10 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 8780 | 50 | 61 | 176lm/W | ON/OFF Multilumen, CLOi | -35..+40°C | IP40 | 1500 | 1.4 | 234.30 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 12300 | 68 | 83 | 180lm/W | ON/OFF Multilumen, CLOi | -35..+30°C | IP40 | 1500 | 1.4 | 294.90 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 2750 | 16W | 170lm/W | DALI 2 | -25..+50°C | IP40 | 1500 | 1.4 | 246.40 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4500 | 26W | 174lm/W | DALI 2 | -25..+45°C | IP40 | 1500 | 1.4 | 246.40 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6320 | 36W | 175lm/W | DALI 2 | -25..+40°C | IP40 | 1500 | 1.4 | 246.40 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 9750 | 58W | 168lm/W | DALI 2 | -25..+35°C | IP40 | 1500 | 1.4 | 246.40 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14560 | 85W | 172lm/W | DALI 2 | -25..+30°C | IP40 | 1500 | 1.4 | 307.00 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 9500 | 54W | 177lm/W | DALI 2 | -25..+40°C | IP40 | 2250 | 2.2 | 357.50 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14620 | 85W | 171lm/W | DALI 2 | -25..+35°C | IP40 | 2250 | 2.2 | 357.50 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 22050 | 126W | 176lm/W | DALI 2 | -40..+30°C | IP40 | 2250 | 2.2 | 392.80 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 6270 | 35W | 179lm/W | ON/OFF Multilumen | -35..+50°C | IP40 | 1500 | 1.4 | 234.30 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 10420 | 61W | 172lm/W | ON/OFF Multilumen | -35..+40°C | IP40 | 1500 | 1.4 | 234.30 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Colour temperature | Colour rendering | Net luminous flux (lm) | Connected load | Pnom (W) begin service life | Pnom (W) end service life | Luminous efficacy | Control | ta | Protection rating | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 14660 | 83W | 176lm/W | ON/OFF Multilumen | -35..+30°C | IP40 | 1500 | 1.4 | 294.90 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1D7N44XGGTIN (EAN): 4058352055250
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4400 |
Connected load | 25W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 178lm/W |
Control | ON/OFF |
ta | -35..+50°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 222.20 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1D7N46XGGTIN (EAN): 4058352055274
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6200 |
Connected load | 35W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 178lm/W |
Control | ON/OFF |
ta | -35..+50°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 222.20 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1D7N48XGGTIN (EAN): 4058352055298
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8360 |
Connected load | 48W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 175lm/W |
Control | ON/OFF |
ta | -35..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 222.20 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DCN485GGTIN (EAN): 4058352056707
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8780 |
Connected load | |
Pnom (W) begin service life | 50 |
Pnom (W) end service life | 61 |
Luminous efficacy | 176lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 242.40 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Order No.: 52TE1DCN4CXMGTIN (EAN): 4058352056714
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 12300 |
Connected load | |
Pnom (W) begin service life | 68 |
Pnom (W) end service life | 83 |
Luminous efficacy | 180lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+30°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 305.00 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DDN445GGTIN (EAN): 4058352051955
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4500 |
Connected load | 26W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 174lm/W |
Control | DALI 2 |
ta | -25..+45°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DDN46XGGTIN (EAN): 4058352051979
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6320 |
Connected load | 36W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 175lm/W |
Control | DALI 2 |
ta | -25..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DDN495GGTIN (EAN): 4058352052006
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 9750 |
Connected load | 58W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 168lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 254.50 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Order No.: 52TE1DDN4E5MGTIN (EAN): 4058352052013
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14560 |
Connected load | 85W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 172lm/W |
Control | DALI 2 |
ta | -25..+30°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 317.10 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DDV495GGTIN (EAN): 4058352055311
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 9500 |
Connected load | 54W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 177lm/W |
Control | DALI 2 |
ta | -25..+40°C |
Protection rating | IP54 |
L (mm) | 2250 |
Wt. (kg) | 2.2 |
Price (EUR) | 369.60 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DDV4E5GGTIN (EAN): 4058352055335
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14620 |
Connected load | 85W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 171lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 2250 |
Wt. (kg) | 2.2 |
Price (EUR) | 369.60 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Order No.: 52TE1DDV4L2MGTIN (EAN): 4058352055366
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 22050 |
Connected load | 126W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 176lm/W |
Control | DALI 2 |
ta | -40..+30°C |
Protection rating | IP54 |
L (mm) | 2250 |
Wt. (kg) | 2.2 |
Price (EUR) | 408.00 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DMN46XGGTIN (EAN): 4058352056738
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6270 |
Connected load | 35W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 179lm/W |
Control | ON/OFF Multilumen |
ta | -35..+50°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 242.40 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DMN4AXGGTIN (EAN): 4058352056752
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 10420 |
Connected load | 61W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 172lm/W |
Control | ON/OFF Multilumen |
ta | -35..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 242.40 |
Licross® 21 recessed opal HO, with spring catch, IP54, AC
Order No.: 52TE1DMN4E5MGTIN (EAN): 4058352056776
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14660 |
Connected load | 83W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 176lm/W |
Control | ON/OFF Multilumen |
ta | -35..+30°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 305.00 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DVN445GGTIN (EAN): 4058352052037
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4500 |
Connected load | |
Pnom (W) begin service life | 26 |
Pnom (W) end service life | 30 |
Luminous efficacy | 174lm/W |
Control | DALI 2, CLO |
ta | -25..+45°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DVN465GGTIN (EAN): 4058352052051
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6500 |
Connected load | |
Pnom (W) begin service life | 38 |
Pnom (W) end service life | 45 |
Luminous efficacy | 172lm/W |
Control | DALI 2, CLO |
ta | -25..+40°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP54, AC
Order No.: 52TE1DVN48XGGTIN (EAN): 4069025071835
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8000 |
Connected load | |
Pnom (W) begin service life | 47 |
Pnom (W) end service life | 56 |
Luminous efficacy | 171lm/W |
Control | DALI 2, CLO |
ta | -25..+35°C |
Protection rating | IP54 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 254.50 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1D7N44XGGTIN (EAN): 4058352055373
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4400 |
Connected load | 25W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 178lm/W |
Control | ON/OFF |
ta | -35..+50°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 214.10 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1D7N46XGGTIN (EAN): 4058352055397
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6200 |
Connected load | 35W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 178lm/W |
Control | ON/OFF |
ta | -35..+50°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 214.10 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1D7N48XGGTIN (EAN): 4058352055410
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8360 |
Connected load | 48W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 175lm/W |
Control | ON/OFF |
ta | -35..+40°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 214.10 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DCN485GGTIN (EAN): 4058352056790
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 8780 |
Connected load | |
Pnom (W) begin service life | 50 |
Pnom (W) end service life | 61 |
Luminous efficacy | 176lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+40°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 234.30 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Order No.: 52TL1DCN4CXMGTIN (EAN): 4058352056813
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 12300 |
Connected load | |
Pnom (W) begin service life | 68 |
Pnom (W) end service life | 83 |
Luminous efficacy | 180lm/W |
Control | ON/OFF Multilumen, CLOi |
ta | -35..+30°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 294.90 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DDN425GGTIN (EAN): 4069025021724
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 2750 |
Connected load | 16W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 170lm/W |
Control | DALI 2 |
ta | -25..+50°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 246.40 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DDN445GGTIN (EAN): 4058352049891
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 4500 |
Connected load | 26W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 174lm/W |
Control | DALI 2 |
ta | -25..+45°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 246.40 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DDN46XGGTIN (EAN): 4058352049914
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6320 |
Connected load | 36W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 175lm/W |
Control | DALI 2 |
ta | -25..+40°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 246.40 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DDN495GGTIN (EAN): 4058352049938
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 9750 |
Connected load | 58W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 168lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 246.40 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Order No.: 52TL1DDN4E5MGTIN (EAN): 4058352049952
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14560 |
Connected load | 85W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 172lm/W |
Control | DALI 2 |
ta | -25..+30°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 307.00 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DDV495GGTIN (EAN): 4058352055434
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 9500 |
Connected load | 54W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 177lm/W |
Control | DALI 2 |
ta | -25..+40°C |
Protection rating | IP40 |
L (mm) | 2250 |
Wt. (kg) | 2.2 |
Price (EUR) | 357.50 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DDV4E5GGTIN (EAN): 4069025021748
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14620 |
Connected load | 85W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 171lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Protection rating | IP40 |
L (mm) | 2250 |
Wt. (kg) | 2.2 |
Price (EUR) | 357.50 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Order No.: 52TL1DDV4L2MGTIN (EAN): 4069025021762
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 22050 |
Connected load | 126W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 176lm/W |
Control | DALI 2 |
ta | -40..+30°C |
Protection rating | IP40 |
L (mm) | 2250 |
Wt. (kg) | 2.2 |
Price (EUR) | 392.80 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DMN46XGGTIN (EAN): 4058352056837
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 6270 |
Connected load | 35W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 179lm/W |
Control | ON/OFF Multilumen |
ta | -35..+50°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 234.30 |
Licross® 21 recessed opal MO, with spring catch, IP40, AC
Order No.: 52TL1DMN4AXGGTIN (EAN): 4058352056851
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 10420 |
Connected load | 61W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 172lm/W |
Control | ON/OFF Multilumen |
ta | -35..+40°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 234.30 |
Licross® 21 recessed opal HO, with spring catch, IP40, AC
Order No.: 52TL1DMN4E5MGTIN (EAN): 4058352056875
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Net luminous flux (lm) | 14660 |
Connected load | 83W |
Pnom (W) begin service life | |
Pnom (W) end service life | |
Luminous efficacy | 176lm/W |
Control | ON/OFF Multilumen |
ta | -35..+30°C |
Protection rating | IP40 |
L (mm) | 1500 |
Wt. (kg) | 1.4 |
Price (EUR) | 294.90 |
