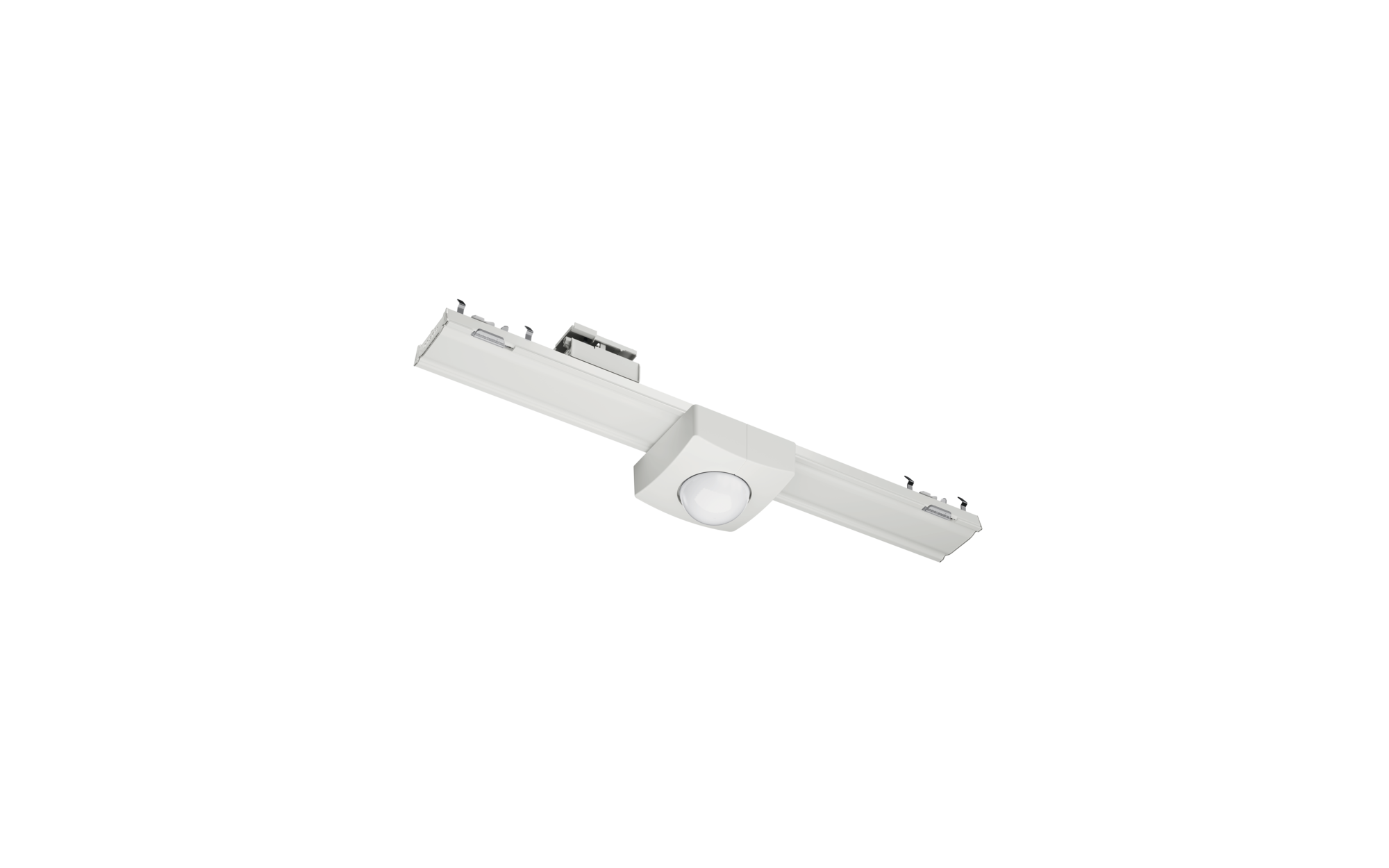

Licross® 11/21 for local control
Stay flexible: The modular system of Licross® enables any configuration of the sensors according to your individual requirements. Changes in use are also easy for the Licross® sensors, so today's high-bay warehouse can already be a free logistics space tomorrow. Regardless of the application, you will always receive the optimal, economical solution thanks to specialized sensors. At the same time, Licross® sensors are true energy saving miracles: with daylight-dependent control you save up to 20%, with movement-dependent control even up to 80% in energy costs. 45 years of experience – trunking Made in Germany perfected in our Licross® trunking system. The one-for-all concept offers a variety of luminaire inserts and functional expansion options for maximum flexibility and future compatibility. With its unique 14 cores, the rail system becomes the backbone of the building infrastructure and is ready for a wide range of applications - today and tomorrow. The luminaire inserts offer outstanding lighting technology with up to 200lm/W for low operating costs as well as SITECO-typical optics technology for the best viewing conditions. Various extensions from sensor to UVC air disinfection device open up a broad horizon of applications far from lighting, which create additional added value.
Simple standalone solution
Siteco Connect 31 Logistic - for rack and high-bay warehouses

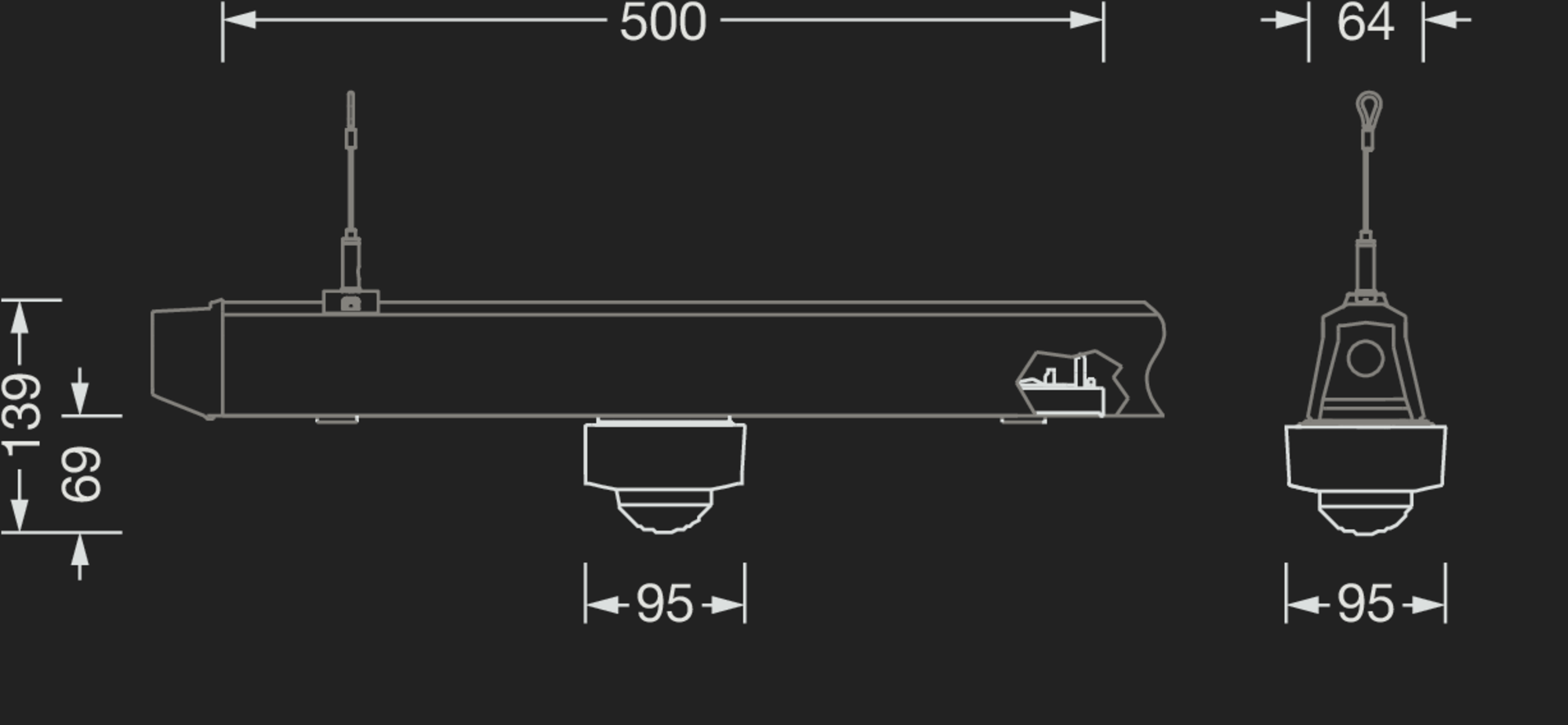

Intro Produktfamilie![](/asset/de_en/en/PNG2000AN/1001276/dd-447.png)
Kenndaten
Equipment master; slave
Article Sensor-Head PR2-M; Sensor-Head PR2-S; Interface MS; Interface MD; Interface S
Besonderheiten
Konfiguration & Datenblätter
- when contacting DALI line 1, suitable from 7-core wiring upwards
- with 14-core wiring, tapping between DALI line 1 and DALI line 2 can be slided tool-free
- adaption to on-site conditions via 90° rotatable sensor interface
- each expansion sensor reduces the number of controllable ECGs by 3 pieces
- a sensor unit consists of sensor head and interface
Ergebnisse
Licross® Interface, slave, switchable
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Price (EUR) |
---|---|---|---|---|---|---|---|
Interface MS | ON/OFF | 500x96 | -20..+50°C | 286.30 |
Licross® Interface, slave, dimmable
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Price (EUR) |
---|---|---|---|---|---|---|---|
Interface MD | DALI | 500x96 | -20..+50°C | 311.20 |
Licross® Interface, slave, dimmable
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Price (EUR) |
---|---|---|---|---|---|---|---|
Interface S | DALI 2 | 500x96 | -20..+50°C | 285.20 |
Siteco Connect Sensor-Head, slave, dimmable
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Price (EUR) |
---|---|---|---|---|---|---|---|
Sensor-Head PR2-S | for rack and highbay storage | DALI 2 | 4..14m | max. 30x4m | 95x95 | -20..+50°C | 95.90 |
Siteco Connect Sensor-Head, master, switchable, dimmable
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Price (EUR) |
---|---|---|---|---|---|---|---|
Sensor-Head PR2-M | for rack and highbay storage | 4..14m | max. 30x4m | 95x95 | -20..+50°C | 114.00 |
Licross® Interface, slave, switchable
Order No.: 56TL1FAMAGTIN (EAN): 4058352400524
Article | Interface MS |
---|---|
Application area | |
Control | ON/OFF |
Mounting height | |
Detection range movement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Price (EUR) | 286.30 |
Licross® Interface, slave, dimmable
Order No.: 56TL1FCMAGTIN (EAN): 4058352373873
Article | Interface MD |
---|---|
Application area | |
Control | DALI |
Mounting height | |
Detection range movement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Price (EUR) | 311.20 |
Licross® Interface, slave, dimmable
Order No.: 56TL1FCSAGTIN (EAN): 4058352373880
Article | Interface S |
---|---|
Application area | |
Control | DALI 2 |
Mounting height | |
Detection range movement | |
Dimension (mm) | 500x96 |
ta | -20..+50°C |
Price (EUR) | 285.20 |
Siteco Connect Sensor-Head, slave, dimmable
Order No.: 59US1HXSPR2AGTIN (EAN): 4058352361979
Article | Sensor-Head PR2-S |
---|---|
Application area | for rack and highbay storage |
Control | DALI 2 |
Mounting height | 4..14m |
Detection range movement | max. 30x4m |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Price (EUR) | 95.90 |
Siteco Connect Sensor-Head, master, switchable, dimmable
Order No.: 59US1HXMPR2AGTIN (EAN): 4058352363881
Article | Sensor-Head PR2-M |
---|---|
Application area | for rack and highbay storage |
Control | |
Mounting height | 4..14m |
Detection range movement | max. 30x4m |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Price (EUR) | 114.00 |
Notwendiges Zubehör
Order No.: 59UC3RCAGTIN (EAN): 4058352363713 | Alle Details anzeigen |
