Modario® 31 sensors with DALI-2 interface
Open interfaces enable modularity, flexibility and future safety
for rack and high-bay warehouses (4…14m)
Intro product family
Key data
Equipment slave
Article Sensor-Head PR2-S; Interface S
Special features
Multi-sensor for use in shipping areas
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Square detection area
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly
Configuration & data sheets
- only suitable for 10-core rail and in combination with DALI luminaire inserts
- each expansion sensor reduces the number of controllable ECGs by 3 pieces

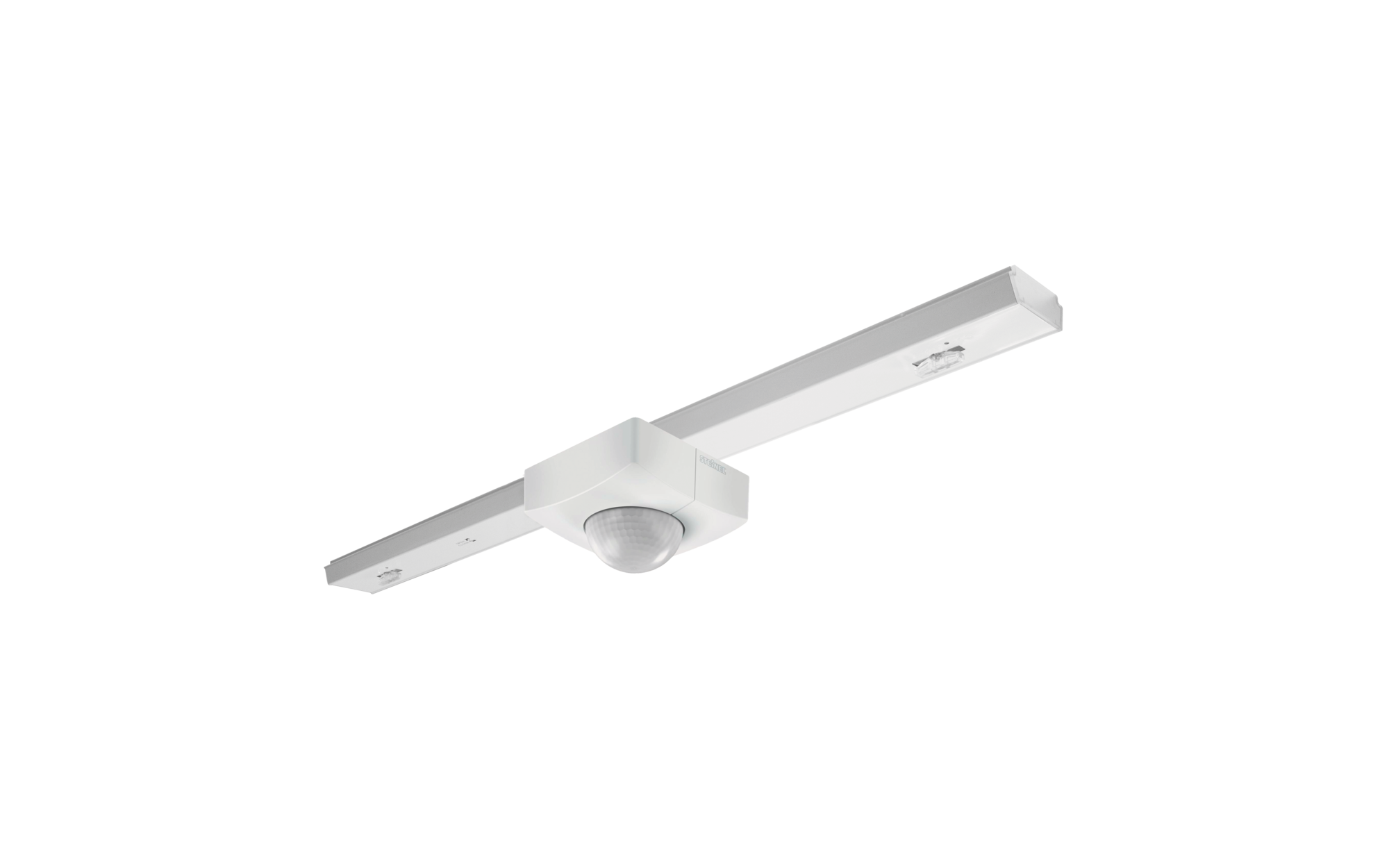

- a sensor unit consists of sensor head and interface
- DALI-2 certified according to parts 101,103,303,304
- DALI current I= 6mA
Results
Modario® 31 Interface, slave
Order No.: 5TR305FCSA GTIN (EAN): 4058352635711
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| Interface S | corridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms | 597x96 | -20..+50°C | 0.4 | 154.70 |
SITECO Connect, slave
Order No.: 59US1HXSPR2A GTIN (EAN): 4058352361979
| Article | Application area | Mounting height | Detection range movement | Dimension (mm) | ta | Wt. (kg) | Price (EUR) |
|---|---|---|---|---|---|---|---|
| Sensor-Head PR2-S | for rack and highbay storage | 4..14m | max. 30x4m | 95x95 | -20..+50°C | 0.1 | 95.90 |
Modario® 31 Interface, slave
Order No.: 5TR305FCSAGTIN (EAN): 4058352635711
| Article | Interface S |
|---|---|
| Application area | corridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms |
| Mounting height | |
| Detection range movement | |
| Dimension (mm) | 597x96 |
| ta | -20..+50°C |
| Wt. (kg) | 0.4 |
| Price (EUR) | 154.70 |
SITECO Connect, slave
Order No.: 59US1HXSPR2AGTIN (EAN): 4058352361979
| Article | Sensor-Head PR2-S |
|---|---|
| Application area | for rack and highbay storage |
| Mounting height | 4..14m |
| Detection range movement | max. 30x4m |
| Dimension (mm) | 95x95 |
| ta | -20..+50°C |
| Wt. (kg) | 0.1 |
| Price (EUR) | 95.90 |
Mandatory accessories
| Order No.: 5LZ904712AGTIN (EAN): 4058352548448 | Show all details |
| Order No.: 5LZ930100GTIN (EAN): 4058352385906 | Show all details |
| Order No.: 5LZ930101GTIN (EAN): 4058352385913 | Show all details |
| Order No.: 5LZ930102GTIN (EAN): 4058352385920 | Show all details |
| Order No.: 5LZ930103GTIN (EAN): 4058352385937 | Show all details |
