Modario® 31 sensors for local control
Simple standalone solution
for magazines and corridors
Intro product familyKey data
Equipment master; slave
Article Sensor-Head PR1-M; Sensor-Head PR1-S; Interface MD; Interface S
Special features
Multi-sensor for use in magazines and corridors
Multi-sensor with very high detection quality guarantees reliable detection of large areas with few sensors. With one sensor, up to 800m² can be detected depending on presence
Sensor specially developed for the application. Square detection area
Master already contains the complete intelligence for room-related lighting control. This reduces complexity and saves space
Basic energy-saving functions such as motion detection, daylight threshold value and fully automatic operation reduce energy costs and CO2 consumption
Inventory light deactivates the sensor function during the inventory period and controls the lights to 100% illuminance
Sensor planning in Relux saves time and gives you the security of planning sensor detection correctly
Configuration & data sheets
- only suitable for 7 or 10-wire rails and in combination with DALI luminaire inserts
- each expansion sensor reduces the number of controllable ECGs by 3 pieces
- a sensor unit consists of sensor head and interface
Results

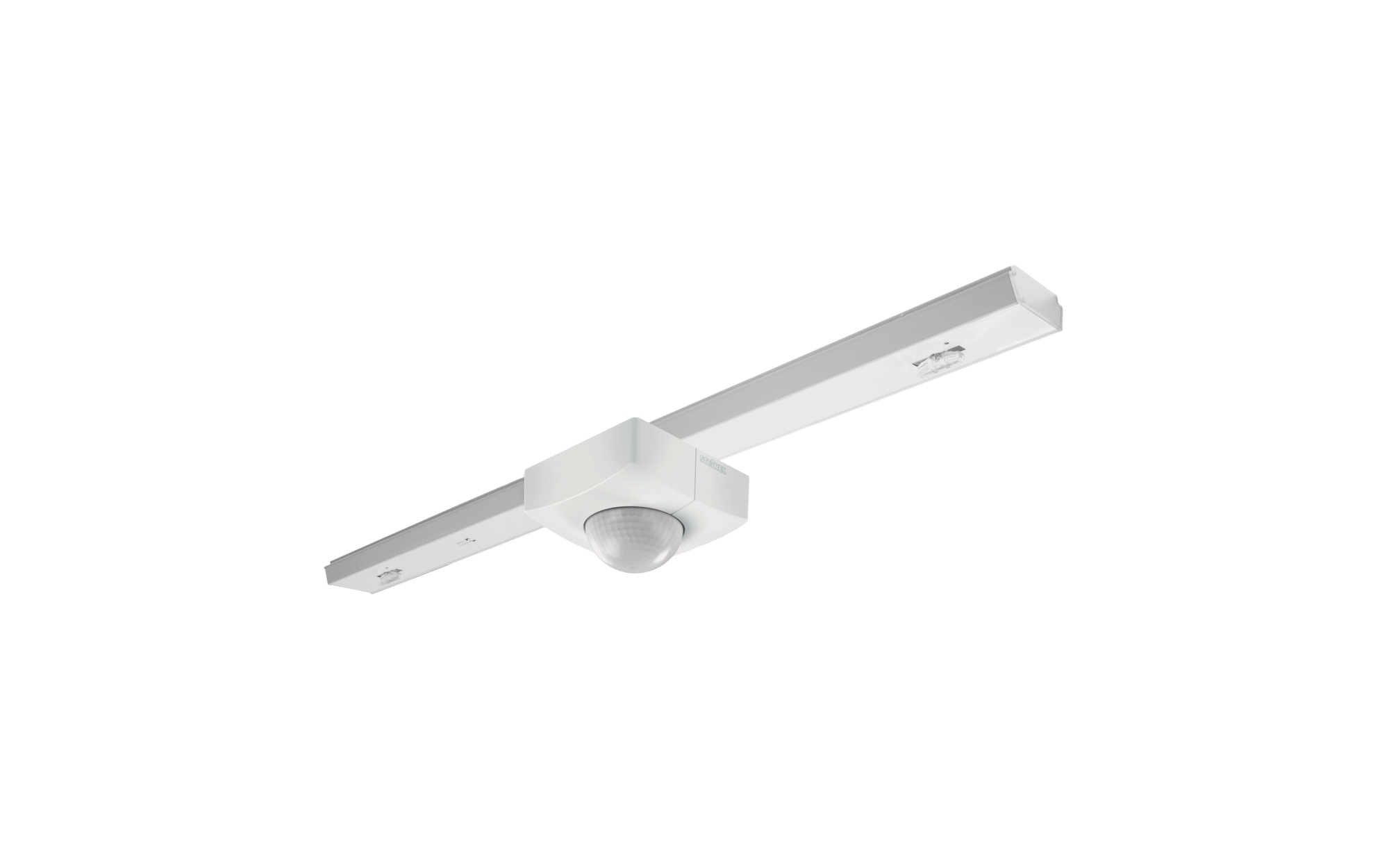

Modario® 31 Interface, master, dimmable
Order No.: 5TR305FCMA GTIN (EAN): 4058352635704
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|
Interface MD | corridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms | DALI | 597x96 | -20..+50°C | 0.4 | 172.40 |
Modario® 31 Interface, slave, dimmable
Order No.: 5TR305FCSA GTIN (EAN): 4058352635711
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|
Interface S | corridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms | DALI 2 | 597x96 | -20..+50°C | 0.4 | 154.70 |
SITECO Connect, slave, dimmable
Order No.: 59US1HXSPR1A GTIN (EAN): 4058352363997
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|
Sensor-Head PR1-S | corridor and magazine | DALI 2 | 2.5..5m | max. 23x6m | 95x95 | -20..+50°C | 0.1 | 95.90 |
SITECO Connect, master, switchable, dimmable
Order No.: 59US1HXMPR1A GTIN (EAN): 4058352363850
Article | Application area | Control | Mounting height | Detection range movement | Dimension (mm) | ta | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|
Sensor-Head PR1-M | corridor and magazine | DALI | 2.5..5m | max. 23x6m | 95x95 | -20..+50°C | 0.1 | 112.80 |
Modario® 31 Interface, master, dimmable
Order No.: 5TR305FCMAGTIN (EAN): 4058352635704
Article | Interface MD |
---|---|
Application area | corridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms |
Control | DALI |
Mounting height | |
Detection range movement | |
Dimension (mm) | 597x96 |
ta | -20..+50°C |
Wt. (kg) | 0.4 |
Price (EUR) | 172.40 |
Modario® 31 Interface, slave, dimmable
Order No.: 5TR305FCSAGTIN (EAN): 4058352635711
Article | Interface S |
---|---|
Application area | corridor and magazine, for rack and highbay storage, parking garage and underground car park, shipping area high rooms |
Control | DALI 2 |
Mounting height | |
Detection range movement | |
Dimension (mm) | 597x96 |
ta | -20..+50°C |
Wt. (kg) | 0.4 |
Price (EUR) | 154.70 |
SITECO Connect, slave, dimmable
Order No.: 59US1HXSPR1AGTIN (EAN): 4058352363997
Article | Sensor-Head PR1-S |
---|---|
Application area | corridor and magazine |
Control | DALI 2 |
Mounting height | 2.5..5m |
Detection range movement | max. 23x6m |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Wt. (kg) | 0.1 |
Price (EUR) | 95.90 |
SITECO Connect, master, switchable, dimmable
Order No.: 59US1HXMPR1AGTIN (EAN): 4058352363850
Article | Sensor-Head PR1-M |
---|---|
Application area | corridor and magazine |
Control | DALI |
Mounting height | 2.5..5m |
Detection range movement | max. 23x6m |
Dimension (mm) | 95x95 |
ta | -20..+50°C |
Wt. (kg) | 0.1 |
Price (EUR) | 112.80 |
Mandatory accessories
Order No.: 59UC3RCAGTIN (EAN): 4058352363713 | Show all details |
