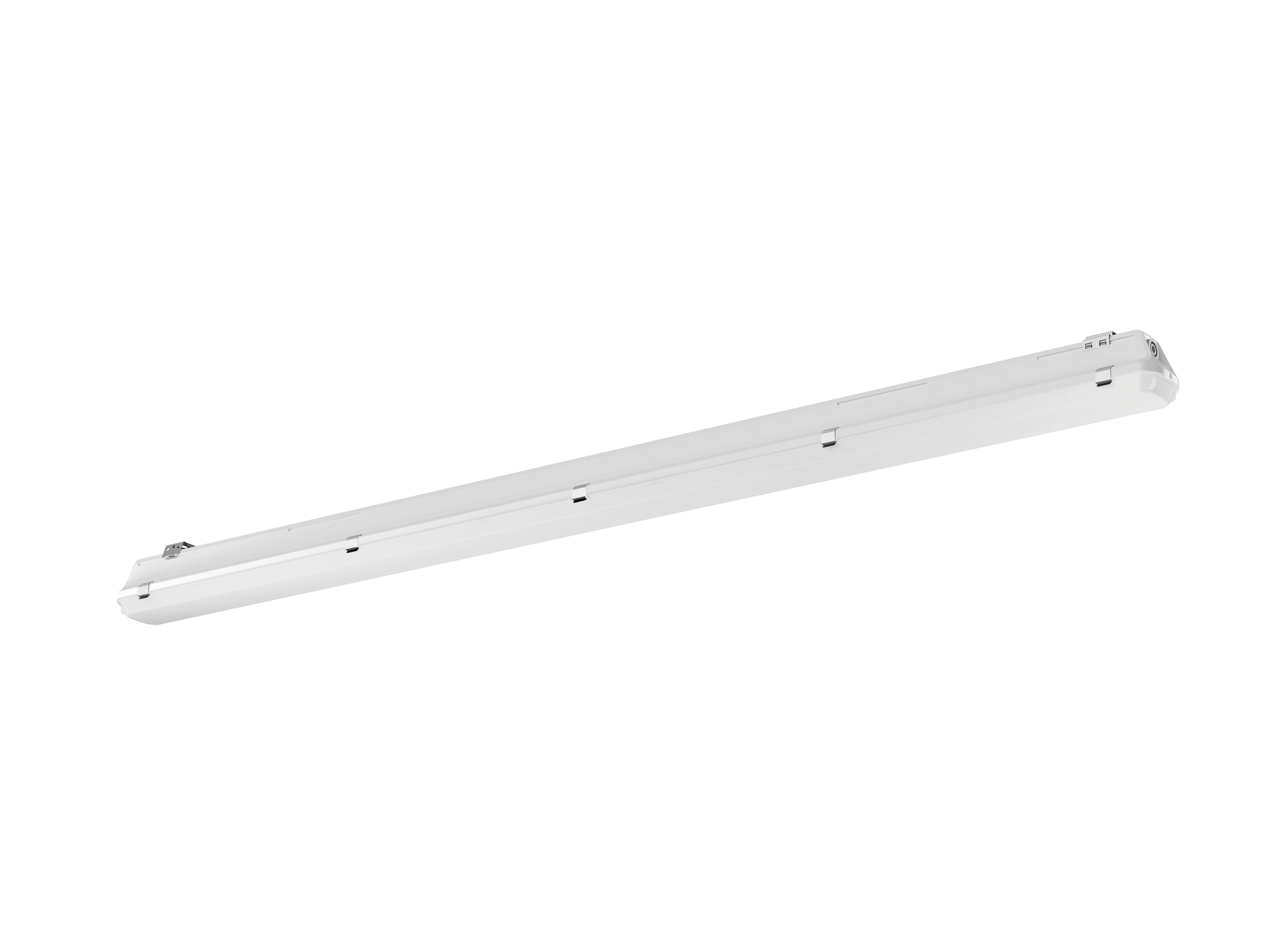

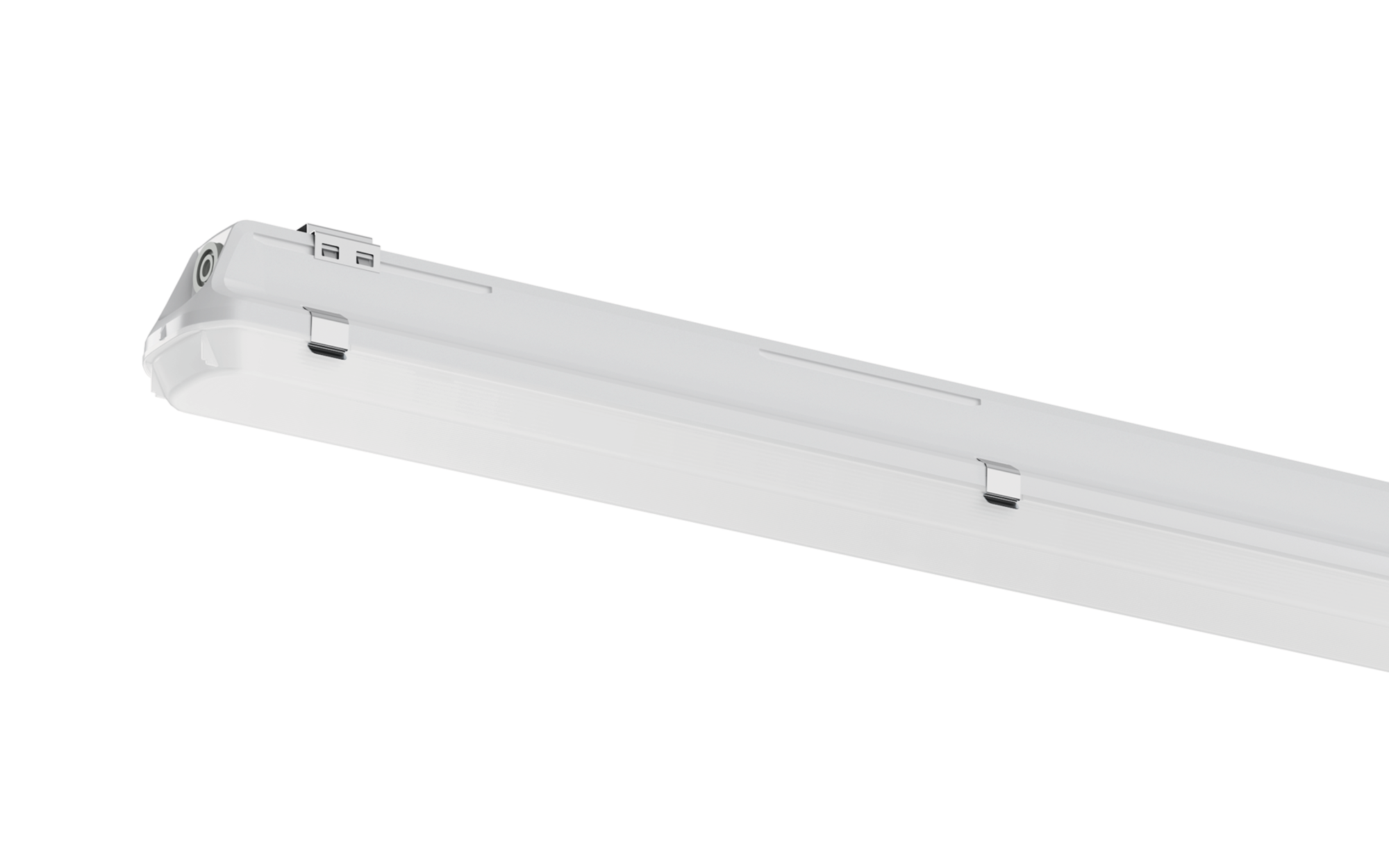

Monsun® 21
Reliable, robust and with sensors that can be retrofitted for flexible control: That is Monsun® 21. The moisture-proof luminaire is prepared for use in exposed outdoor areas and in harsh environments such as in industry and multi-storey car parks. Thanks to excellent glare limitation, Monsun® 21 is also an optimal lighting solution for industrial and manual work.
Our core portfolio: Monsun® 21 is our luminaire with higher protection rating with the highest standards of efficiency, quality and flexibility for your project
![](/asset/de_en/en/PNG/1007424/impression-795-1.png)
Produkttypen
Monsun® 21 Parking | incl. sensor with DALI2 interface
Intro Produktfamilie![](/asset/de_en/en/PNG2000AN/1001527/dd-793.png)
Kenndaten
Article damp-proof luminaire
Lighting effect direct symmetric diffuse distribution
Net luminous flux 4810lm
Colour temperature 4000K
Control DALI 2
Cover PC
Protection rating IP66
Insulation class insulation class I (protective earthing)
Protection symbol D
Impact resistance IK08
Halogen freeness halogen-free wiring
IFS corresponds to IFS (International Featured Standards) requirements for safety and quality in the food industry
Besonderheiten
Konfiguration & Datenblätter
- Some luminaires with through-wiring as standard; for other luminaires: please order through-wiring separately if required
- includes ceiling fixing element and chain hanger of V2A; surface-mounting to ceilings without further luminaire-specific mounting accessories; for further installation methods: please order mounting accessory separately
- for chain suspension: please order chain separately
- for wall mounting: please order anti-theft/wall mounting protection separately
- for further installation methods: please order mounting accessory separately
- for greater anti-theft safety for all types of installation: if required, please order anti-theft/wall mounting protection separately
Ergebnisse
Monsun® 21 parking, diffuse distribution, DALI 2, PC
Colour temperature | Colour rendering | Luminous flux | Connected load | Luminous efficacy | Control | ta | Impact resistance | L (mm) | Wt. (kg) | Price (EUR) |
---|---|---|---|---|---|---|---|---|---|---|
4000K | CRI > 80 | 4810lm | 34W | 140lm/W | DALI 2 | -25..+35°C | IK08 | 1590 | 2.7 | 449.90 |
Monsun® 21 parking, diffuse distribution, DALI 2, PC
Order No.: 51FG20DP440BHQGTIN (EAN): 4058352583142
Colour temperature | 4000K |
---|---|
Colour rendering | CRI > 80 |
Luminous flux | 4810lm |
Connected load | 34W |
Luminous efficacy | 140lm/W |
Control | DALI 2 |
ta | -25..+35°C |
Impact resistance | IK08 |
L (mm) | 1590 |
Wt. (kg) | 2.7 |
Price (EUR) | 449.90 |
Notwendiges Zubehör
Order No.: 5LZ930100GTIN (EAN): 4058352385906 | Alle Details anzeigen |
Order No.: 5LZ930101GTIN (EAN): 4058352385913 | Alle Details anzeigen |
Order No.: 5LZ930102GTIN (EAN): 4058352385920 | Alle Details anzeigen |
Order No.: 5LZ930103GTIN (EAN): 4058352385937 | Alle Details anzeigen |
Optionales Zubehör
Order No.: 58FV003GTIN (EAN): 4058352409473 | Alle Details anzeigen |
Order No.: 58FV005GTIN (EAN): 4058352409503 | Alle Details anzeigen |
Order No.: 58FV007GTIN (EAN): 4058352409510 | Alle Details anzeigen |
Order No.: 58FV009GTIN (EAN): 4058352409534 | Alle Details anzeigen |
Order No.: 58FV00DGTIN (EAN): 4058352409558 | Alle Details anzeigen |
Order No.: 58FT004GTIN (EAN): 4058352410356 | Alle Details anzeigen |
Order No.: 58FT003GTIN (EAN): 4058352410332 | Alle Details anzeigen |
Order No.: 58FT005GTIN (EAN): 4058352410370 | Alle Details anzeigen |
Order No.: 59FT001GTIN (EAN): 4058352410394 | Alle Details anzeigen |
Order No.: 58FT002GTIN (EAN): 4058352410318 | Alle Details anzeigen |
Order No.: 5LY9001GTIN (EAN): 4039806184290 | Alle Details anzeigen |
Order No.: 5LY9002GTIN (EAN): 4039806184313 | Alle Details anzeigen |
Order No.: 5LY9004GTIN (EAN): 4039806184368 | Alle Details anzeigen |
Order No.: 58FM007GTIN (EAN): 4058352410295 | Alle Details anzeigen |
Order No.: 58FM002GTIN (EAN): 4058352410257 | Alle Details anzeigen |
Order No.: 58FM003GTIN (EAN): 4058352426500 | Alle Details anzeigen |
Order No.: 58FM004GTIN (EAN): 4058352426524 | Alle Details anzeigen |
Order No.: 58FM006GTIN (EAN): 4058352410271 | Alle Details anzeigen |
Order No.: 58FM008GTIN (EAN): 4058352426548 | Alle Details anzeigen |
Order No.: 58FM001GTIN (EAN): 4058352410233 | Alle Details anzeigen |
Order No.: 58FS001GTIN (EAN): 4058352474945 | Alle Details anzeigen |
Order No.: 58FS002GTIN (EAN): 4058352474976 | Alle Details anzeigen |
Order No.: 58FS003GTIN (EAN): 4058352475799 | Alle Details anzeigen |
Order No.: 58FS005GTIN (EAN): 4058352477052 | Alle Details anzeigen |
Order No.: 59TL1SGTIN (EAN): 4058352272589 | Alle Details anzeigen |
Order No.: 58FS006GTIN (EAN): 4058352466605 | Alle Details anzeigen |
